How to set up CR202 as a jump server?

How to set up CR202 as a jump server?

The Topology:

PC---Ethernet cable---CR202------wifi-----IR305

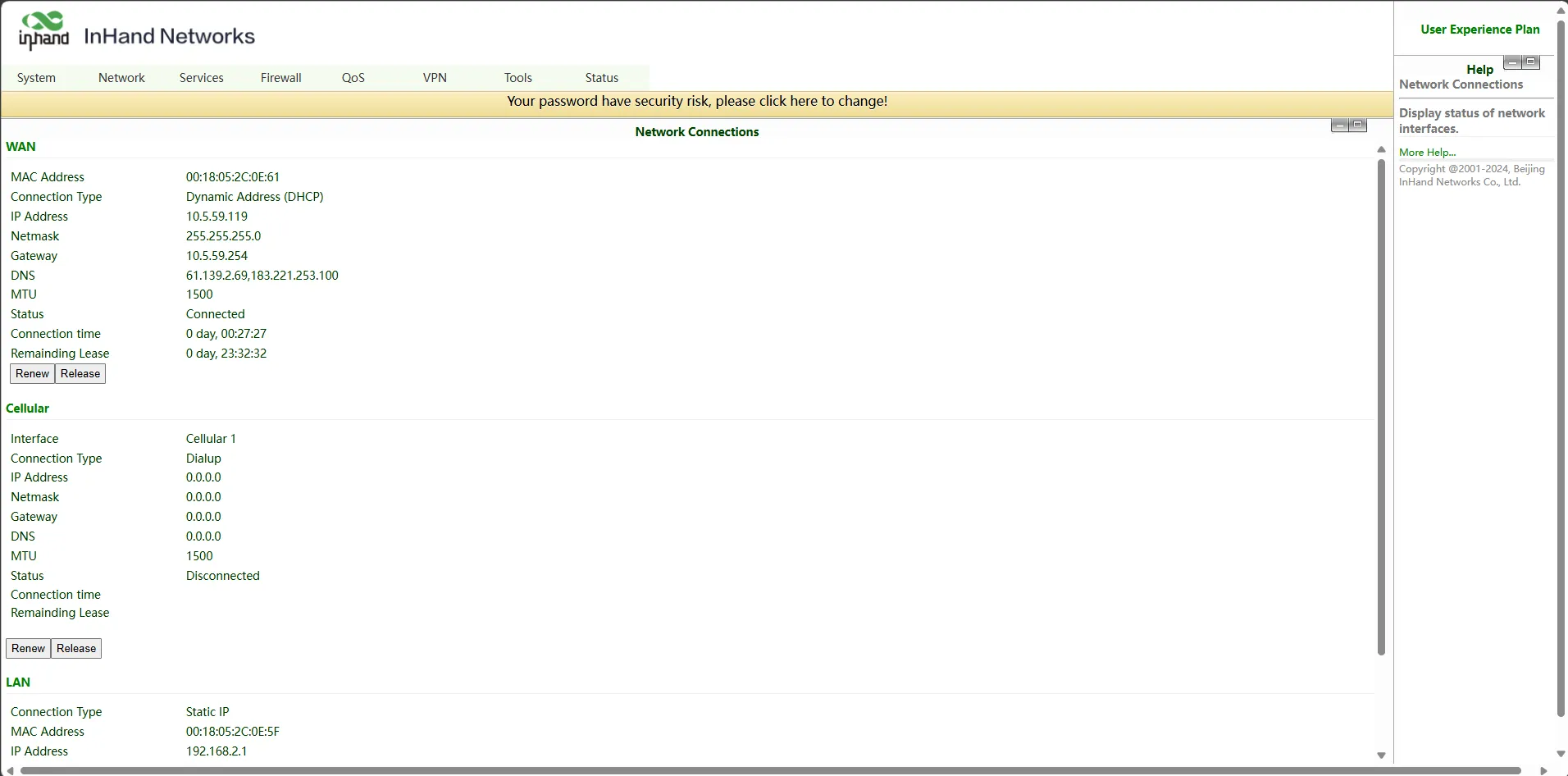

CR202 :

WAN IP: 10.5.59.119

LAN IP: 192.168.2.1

Set up WiFi AP.

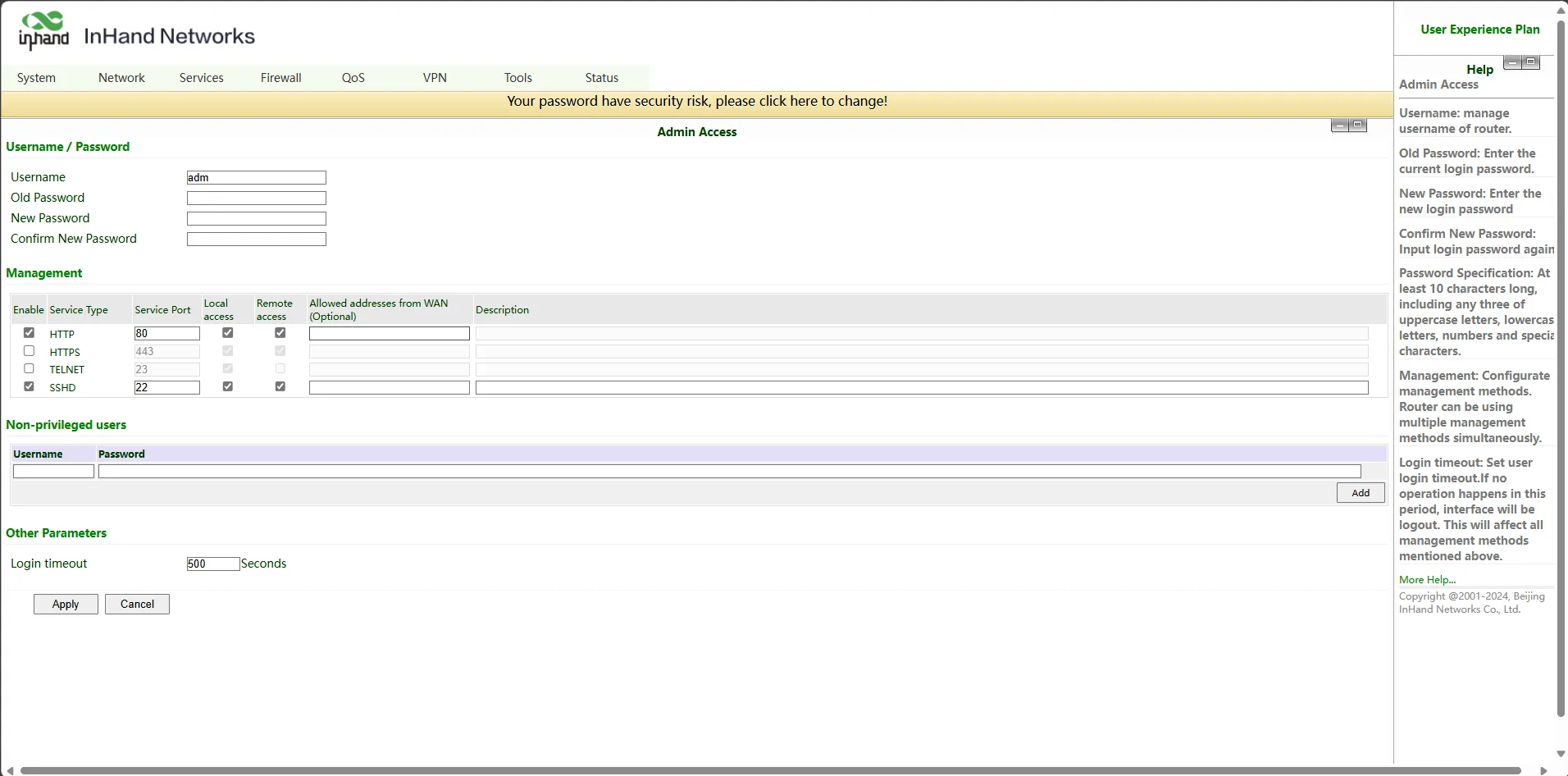

  1. Make sure enable the SSH, local access and remote access.

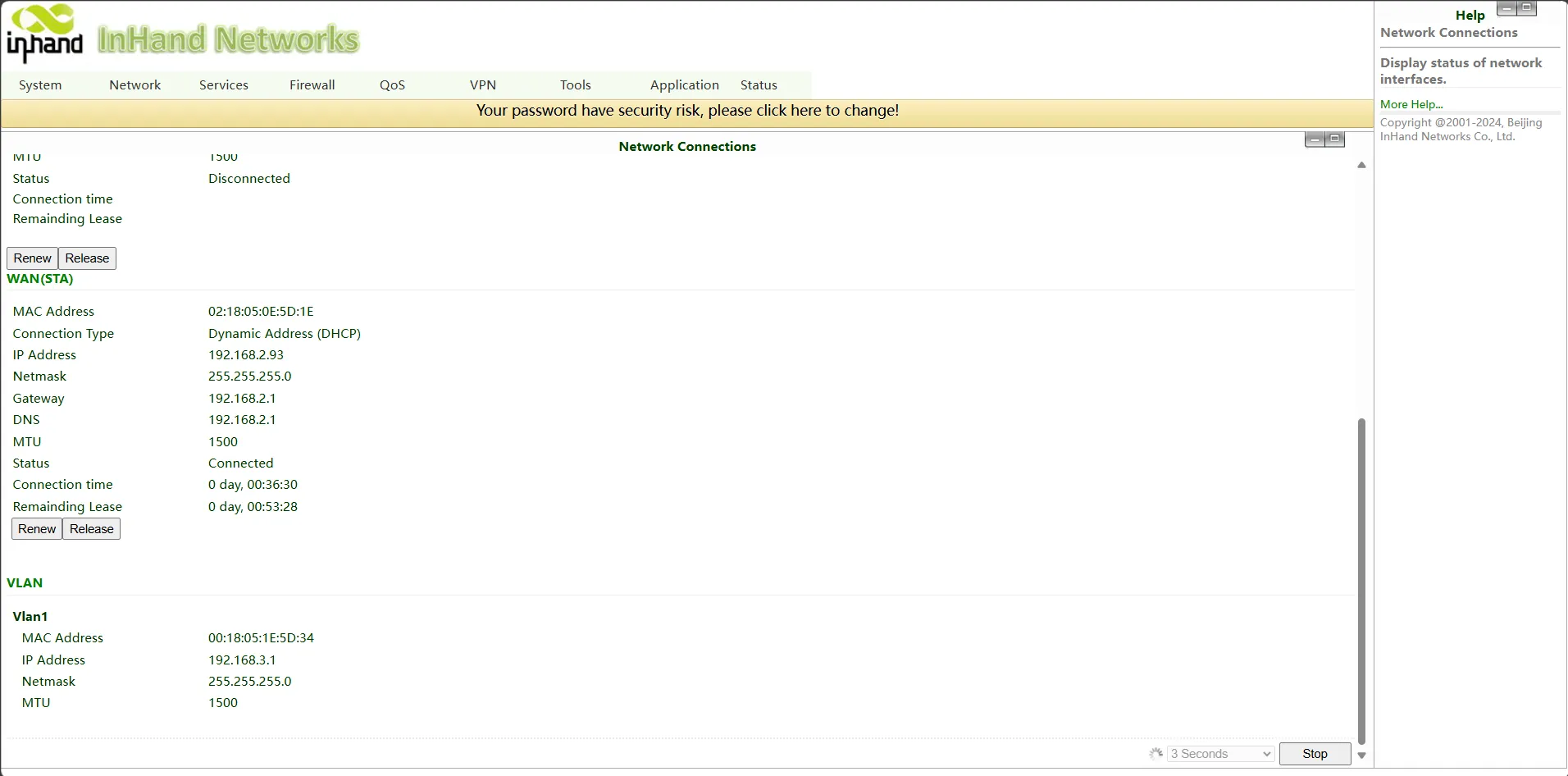

IR305:

WAN IP: 192.168.2.93

LAN IP: 192.168.3.1

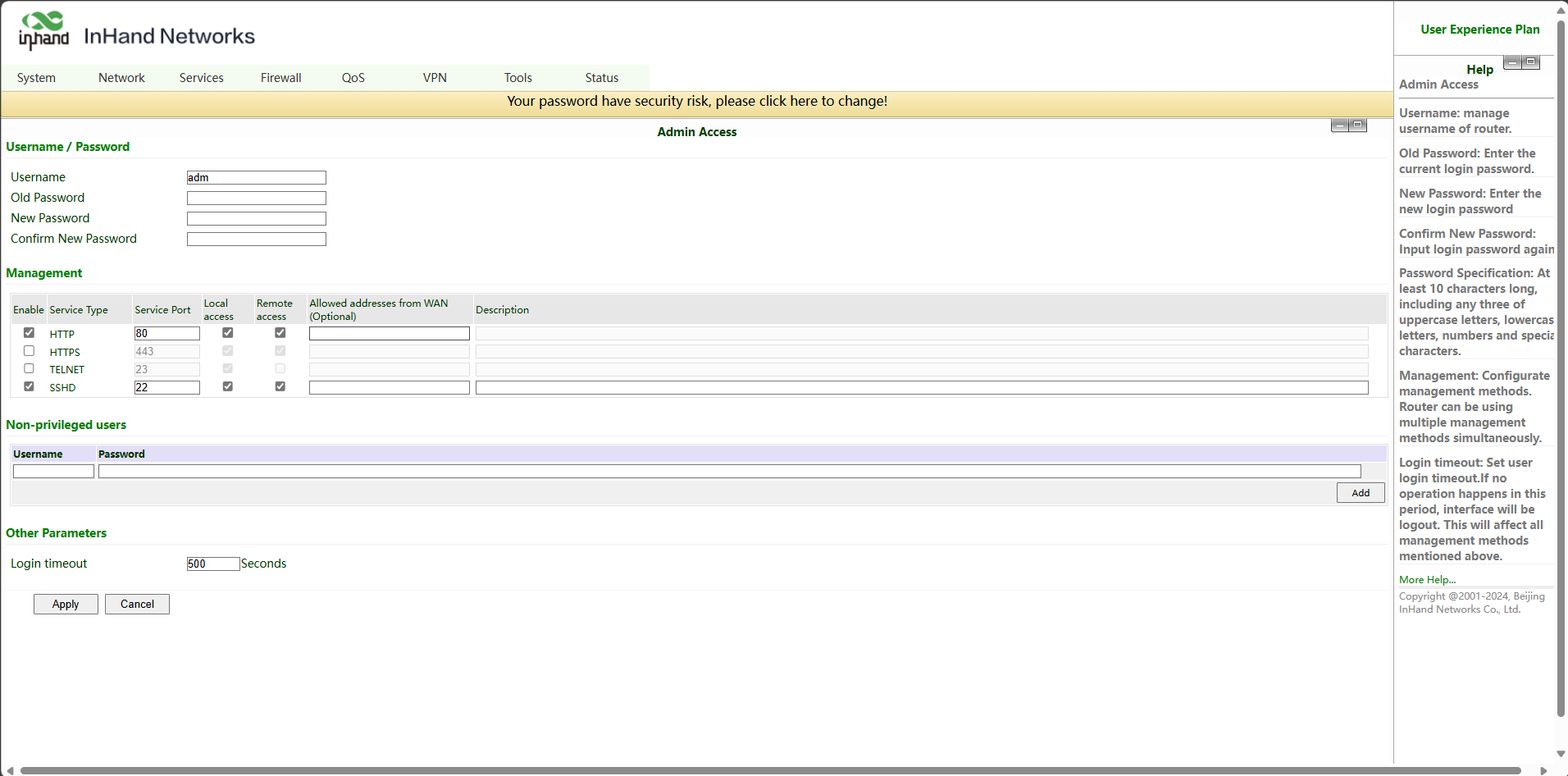

  1. Make sure enable the SSH, local access and remote access.

The verifying process:

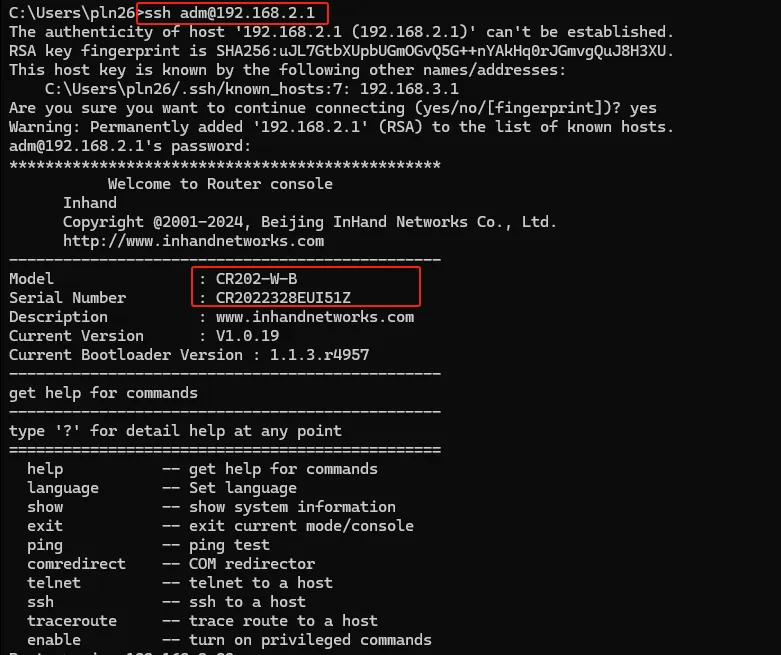

  1. ssh to enter the CR202 backend.

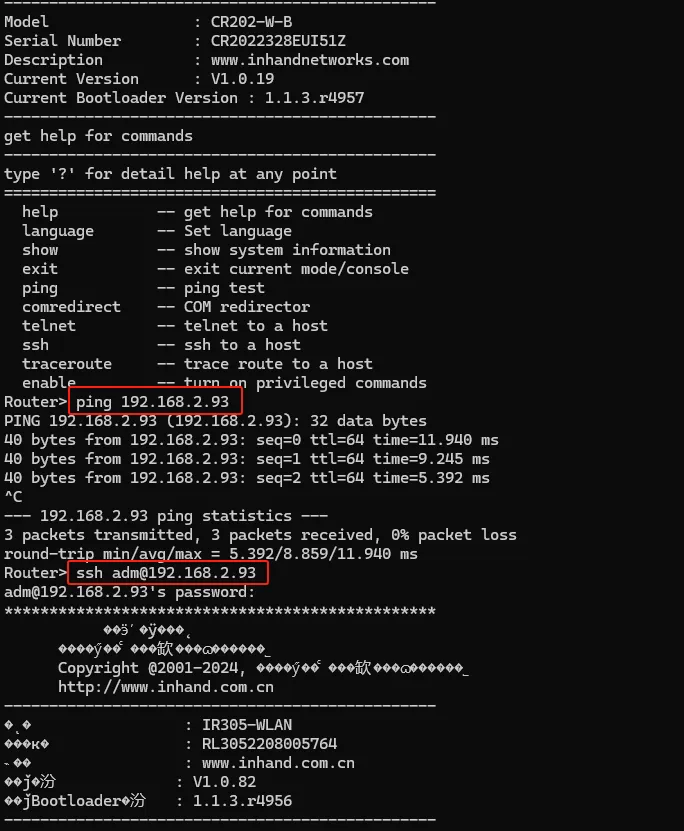

  1. make sure the end device is connected, PING to test. Then use the command, ssh adm@end device IP, then you could access the end device's backend.
