How to set up Wi-fi on IR300 and IR600

How to set up Wi-fi on IR300 and IR600

Background: InHand routers with the -WLAN tag on the part number have a Wi-Fi module to allow the router to broadcast like an Access Point. Here is how to set it up.

  1. Connect PC directly to router via Ethernet or Wi-Fi and log into router at 192.168.2.1 using default credentials (adm/123456)

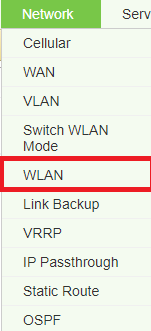

  2. Go to Network>WLAN.
  3. Enable. Change Auth Mode to WPA2-PSK.
  4. Change WPA/WPA2 PSK to what you want the password to be (8 character minimum).
  5. Change Encryption to AES. Change SSID if needed.
  6. Hit Apply.
