Intelligent Remote Monitoring for Electric Vehicle (EV) Charging Stations

Intelligent Remote Monitoring for Electric Vehicle (EV) Charging Stations

1. Scenario Overview

With the rapid expansion of electric vehicle infrastructure, charging station operators face the challenge of managing geographically dispersed chargers from multiple manufacturers. These stations are often located in outdoor environments and require constant connectivity to process payments, monitor equipment health, and manage energy loads. The IG502 serves as a rugged, high-performance edge computing gateway that connects the station hardware to the centralized management cloud.

2. The IG502 Solution

The IG502 provides the necessary processing power and industrial-grade reliability to serve as the brain of a charging station.

Diverse Connectivity: The gateway utilizes RS485 or Ethernet ports to connect with multiple EV chargers and electricity meters simultaneously.

Protocol Normalization: Through the DeviceSupervisor Agent (DSA), the gateway converts proprietary charger data into standard formats using integrated industrial protocols such as Modbus RTU/TCP.

Edge Intelligence: Using its ARM Cortex-A8 processor and 512MB RAM, the IG502 can run local Python scripts to manage load balancing between chargers, preventing grid overloads during peak hours.

Resilient Communications: The gateway ensures stable data transmission via 4G LTE or Wi-Fi, featuring multi-level link detection and a hardware watchdog to automatically recover from communication failures.

Outdoor Durability: The IG502 features an IP30 protection-rated metal shell and operates reliably in temperatures ranging from -20°C to 70°C, making it ideal for outdoor charging cabinets.

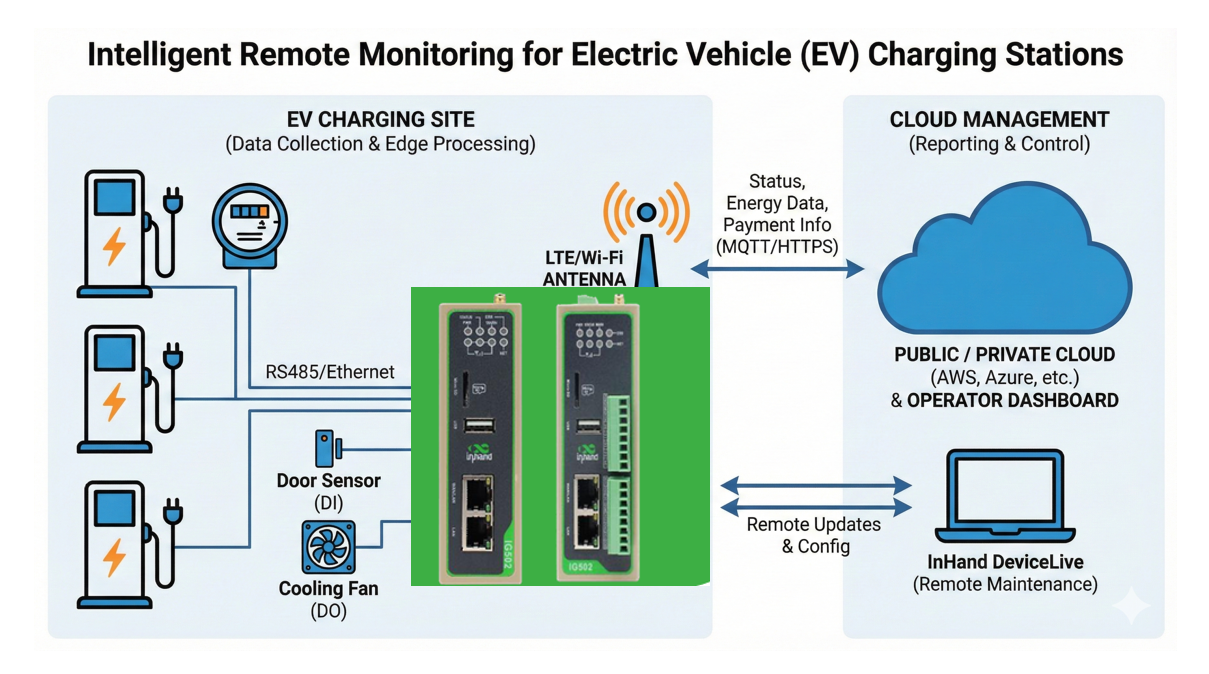

3. Operational Workflow
​
Data Collection: The IG502 polls the chargers for real-time status, energy consumption, and fault codes using the RS485 industrial terminals.

Local Management: For stations with auxiliary equipment, the gateway uses its optional 4x Digital Inputs (DI) and 4x Digital Outputs (DO) to monitor cabinet door sensors or control cooling fans and emergency lights.

Cloud Reporting: Filtered data is reported to the operator’s private cloud or public platforms like AWS or Azure via secure HTTPS or MQTT channels.

Remote Maintenance: Technical teams use the InHand DeviceLive cloud service to perform remote firmware upgrades and configuration backups, eliminating the need for frequent on-site visits.

4. Added Value

Operational Continuity: The device supports dual SIM card failover, ensuring that payment processing and monitoring remain functional even if one cellular carrier’s signal drops.

Edge Security: The gateway includes a built-in firewall and supports OpenVPN and IPSec VPN to protect sensitive transaction data from unauthorized access.

Future-Proofing: The Docker management capability allows operators to deploy new software services, such as facial recognition or specialized advertising displays, directly to the station without hardware changes.
