Smart Agriculture — Precision Irrigation and Soil Monitoring

Smart Agriculture — Precision Irrigation and Soil Monitoring

1. The Challenge

Modern large-scale farms often cover thousands of acres where traditional Wi-Fi or wired networks are impractical due to distance and infrastructure costs. Farmers need to monitor soil moisture, temperature, and local weather conditions across vast fields to optimize water usage and crop yields, but many of these areas lack reliable power and high-speed internet.

2. The EC312 LoRaWAN Solution

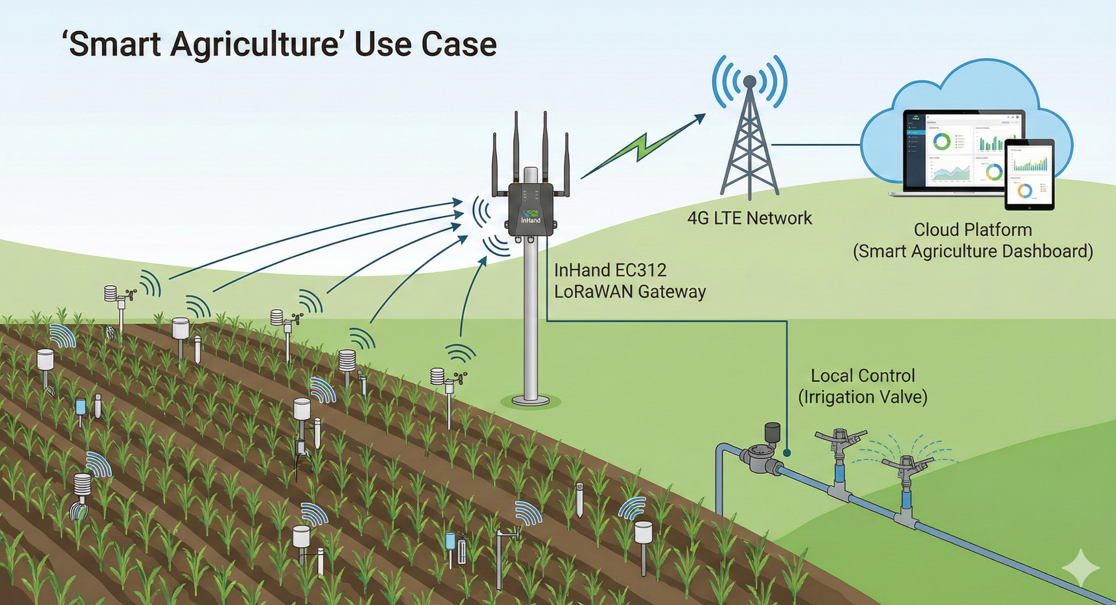

The EC312 LoRaWAN Gateway acts as the central communication hub, collecting data from low-power sensors scattered across the farm.

  • Massive Device Connectivity: A single EC312 gateway can support up to 2,000 LoRaWAN end-nodes (sensors), allowing a farm to deploy hundreds of soil moisture probes and weather stations without needing multiple gateways.

  • Long-Range Coverage: Utilizing the Semtech SX1302 chip, the EC312 provides a communication range of up to 15 km in Line-of-Sight (LOS) conditions, making it ideal for covering expansive rural fields from a single elevated point.

  • Built-in Intelligence: With its embedded LoRaWAN Network Server (LNS), the EC312 can manage the sensor network locally, which is crucial for remote areas with intermittent cloud connectivity.

  • Reliable Backhaul: The gateway uses 4G LTE (with dual SIM failover) to transmit aggregated data to the cloud, ensuring that even if one cellular carrier's signal is weak, the data still reaches the management platform.

3. Key Hardware Advantages for Rural Deployment

  • Industrial Durability: The EC312 is built with a fanless design and an IP30 rated enclosure, capable of operating in temperatures from -20°C to 70°C, essential for outdoor equipment cabinets exposed to the elements.

  • Power Resilience: In the event of a power surge or localized outage, the built-in supercapacitor ensures the device stays online for 20 seconds—long enough to send a "power loss" alert and shut down safely without corrupting data.

  • Edge Processing: Running Debian 11 and supporting Docker, the EC312 can run local scripts to trigger irrigation valves automatically via its RS485 or Digital Output ports if soil moisture levels drop below a certain threshold.

4. Results and Benefits

  • Water Conservation: Real-time soil data allows for precision irrigation, reducing water waste by up to 30%.

  • Operational Efficiency: Reduced need for manual field checks saves significant labor costs and fuel for farm vehicles.

  • Scalability: The high node capacity of the EC312 allows the farm to easily add more sensors (e.g., for livestock tracking or gate security) as the operation grows.
