Smart City — Integrated Urban Lighting and Air Quality Monitoring

Smart City — Integrated Urban Lighting and Air Quality Monitoring

1.The Challenge

Urban centers face the dual challenge of reducing energy costs from street lighting while simultaneously monitoring environmental factors like air quality (PM2.5, CO2) and noise levels. Deploying separate networks for lighting and environmental sensors is often too expensive and difficult to manage across a wide geographic area with high signal interference.

2.The EC312 LoRaWAN Solution

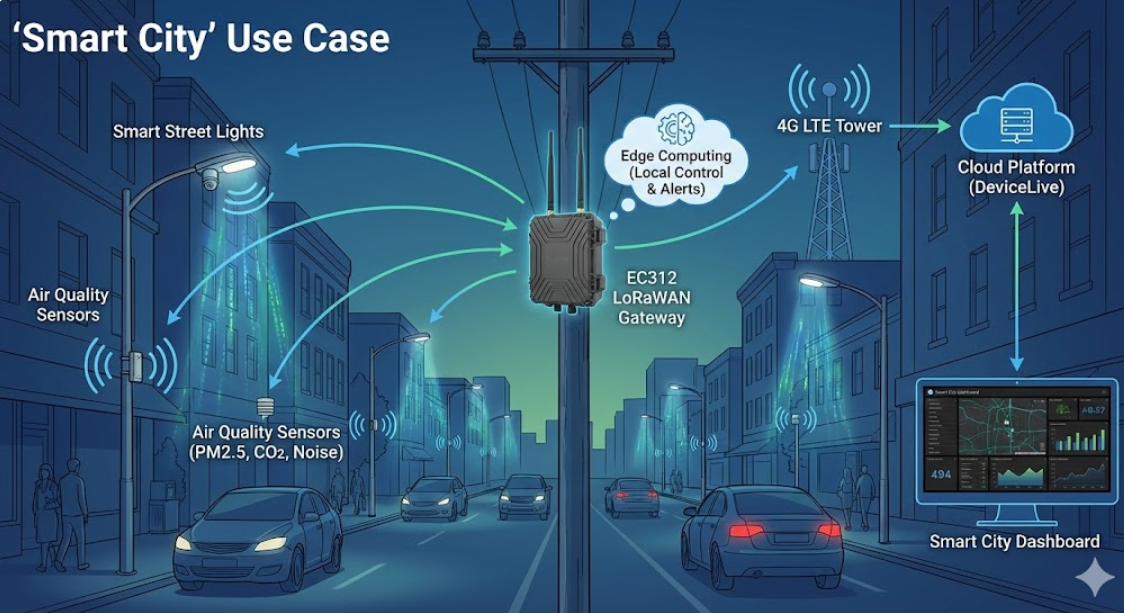

The EC312 LoRaWAN Gateway acts as a unified communication backbone for city-wide IoT infrastructure:

  • High-Density Connectivity: A single EC312 can support up to 2,000 LoRaWAN end-nodes, allowing a city to connect hundreds of smart street lights and environmental sensors to a single gateway.

  • Extended Urban Coverage: With a communication range of up to 15 km (LOS) and 2 km in dense urban areas (NLOS), the EC312 provides reliable coverage for multiple city blocks from a single rooftop or pole-mounted installation.

  • Edge Computing & Local Intelligence: Running Debian 11 and supporting Docker, the EC312 can process sensor data locally to identify pollution "hotspots" or automatically adjust street lighting intensity based on real-time pedestrian or traffic data.

  • Multi-Link Reliability: The gateway ensures constant uptime by using 4G LTE with dual SIM failover as a backhaul, switching between cellular carriers if one network experiences downtime.

3.Key Hardware Benefits for Urban Deployment

  • Industrial Security: Protects sensitive city infrastructure with hardware-level security, including Secure Boot, a built-in TPM 2.0 chip, and TrustZone.

  • Power Resilience: In the event of an urban power grid failure, the built-in supercapacitor provides 20 seconds of hold-up time, allowing the EC312 to send a "last-gasp" alarm to the management center and perform a safe shutdown.

  • Rugged Design: The fanless cooling and IP30 housing allow the gateway to operate reliably in outdoor enclosures within a temperature range of -20°C to 70°C.

4.Results and Benefits

  • Cost Efficiency: Consolidating lighting and environmental monitoring into a single LoRaWAN network significantly reduces installation and maintenance costs.

  • Public Safety & Health: Real-time air quality maps enable cities to issue health warnings and optimize traffic flow to reduce localized pollution.

  • Remote Management: Using the DeviceLive cloud platform, city operators can remotely update firmware (FOTA) and manage edge applications across thousands of EC312 units without on-site visits.
