InConnect User Manual

InConnect User Manual

1. About InConnect

InHand Connect Service cloud platform (hereinafter referred to as InConnect) is a "one-stop" networking service provided for enterprise customers. It features user-friendly interface and simple operations. InConnect can be used together with InHand networking equipment highly recognized by global customers to help you quickly access global business outlets anytime anywhere, and achieve secure and stable interconnection of equipment and data exchange in different regions, promoting enterprise informatization construction and digital transformation.


How InConnect works:


2. Registration and Login

2.1 Registration

In a browser, enter https://ics.inhandnetworks.com to access the registration page of InConnect. The Google Chrome browser is recommended.

| Caution: If you or your device is in the European region, please use https://ics.inhandnetworks.eu/.


2.2 Login

After successful registration, enter the email account used for registration and password to log in to InConnect. After login, change the password and bind a mobile phone number on the Settings page. Next time you can use the bound mobile phone number for login.


3. Connecting a Router to InConnect


After a router is added to InConnect, InConnect automatically delivers the running configuration to create a secure network connection. To connect a router to InConnect, perform the following steps:

1. On the Sites page of InConnect, add the router.

2. On the web page of the router, connect the router to InConnect.

3. Check the connection between the router and InConnect.

The details are described below.


3.1  Adding the Router to InConnect

Before connecting the router to InConnect on the web page of the router, you need to add information about this router again on the InConnect platform. Then, the router will automatically connect to InConnect. InConnect can implement remote management on online routers.

1. Choose Sites>Routers, and click Add.


2. In the Create Router dialog box, enter the customized name and serial number of the router, select the router model, and click OK.

| Caution: You can view the serial number on the router nameplate or on the Web Management page of the router. The selected router model must be correct; otherwise, connection to the router may fail.

3. If the router is displayed on the Routers tab page, the router is added.


4. InConnect allocates a virtual IP address for the added router. After the InConnect client is installed and configured, you can use this virtual IP address to remotely access the router. For details about how to install the client, see 4. Using the Client.


3.2 Connecting a Router to InConnect

After adding a router to InConnect, you need to connect the router to InConnect on the web page of the router. Before configuration, ensure that the router is already connected to the network. For details about how to connect devices to the network, see the appendix.

| Caution:

  1. The configuration method varies with different product series. Ensure that you refer to the same series of products for configuration according to the equipment in your hand.
  2. The interface varies with the firmware version of the router, and the actual interface should prevail.


3.2.1 IR300-Series Routers

1. After connecting a router to a PC, access 192.168.2.1 in the browser.

2. On the login page, enter the initial login information to go to the web page of the router. The default login account is adm and the password is 123456.

| Caution: To ensure security, it is recommended that you change the default login password after the initial login, and properly keep the password.

3. On the web page of the router, choose Services>Device Manager and complete the following settings:

1. Set Service Type to InConnect Service.

2. Set Server to ics.inhandnetworks.com.

3. In the Registered Account text box, enter the email account that you use to register the InConnect account. If you do not have an InConnect account, click Sign up/Sign in to register an account, and specify Registered Account here.


4. Click Apply. If the status displayed on the Services>Device Manager page is Connected, the router is connected to InConnect. If the status is Registering, please check whether the router has been added to the platform.


3.2.2 IR600-Series Routers

1. After connecting a router to a PC, access 192.168.2.1 in the browser.

2. On the login page, enter the initial login information to go to the web page of the router. The default login account is adm and the password is 123456.

| Caution: To ensure security, it is recommended that you change the default login password after the initial login, and properly keep the password.

3. On the web page of the router, choose Services>Device Manager and complete the following settings:

1. Set Service Type to InConnect Service.

2. Set Server to ics.inhandnetworks.com.

3. In the Registered Account text box, enter the email account that you use to register the InConnect account. If you do not have an InConnect account, click Sign up/Sign in to register an account, and specify Registered Account here.


4. Click Apply. If the status displayed on the Services>Device Manager page is Connected, the router is connected to InConnect. If the status is Registering, please check whether the router has been added to the platform.




3.2.3 IR900-Series Routers

1. Use a network cable to connect a PC to the LAN port of the router, and access 192.168.2.1 in the browser.

2. On the login page, enter the initial login information to go to the web page of the router. The default login account is adm and the password is 123456.

| Caution: To ensure security, it is recommended that you change the default login password after the initial login, and properly keep the password.

4. On the web page of the router, choose Administration>Device Manager and complete the following settings:

1. Select Device Manager Enable.

2. Set Service Type to InConnect Service.

3. Set Server Address to ics.inhandnetworks.com.

4. In the Registered Account text box, enter the email account that you use to register the InConnect account. If you do not have an InConnect account, click Sign up/Sign in to register an account, and specify Registered Account here.


5. Click Apply & Save. If the status displayed on the Status tab page is Connected, the router is connected to InConnect. If the status is Registering, please check whether the router has been added to the platform.



3.2.4 IG500-Series Routers

1. Use a network cable to connect a PC to the FE0/1 port of the router, and access 192.168.1.1 in the browser.

2. On the login page, enter the initial login information to go to the web page of the router. The default login account is adm and the password is 123456.

| Caution: To ensure security, it is recommended that you change the default login password after the initial login, and properly keep the password.

3. On the web page of the router, choose System>InHand Cloud and complete the following settings:

1. On the InHand Connect Service tab page, set Server Address to ics.inhandnetworks.com and Registered Account to the email account that you use to register the InConnect account. If you do not have an InConnect account, click Sign up/Sign in to register an account, and specify Registered Account here.

2. Click Submit. The router starts to setting up a connection with InConnect. After the connection is set up, the following message is displayed on the status bar: "Status: Connected; State Description: Connection Accepted". If the status is Registering, please check whether the router has been added to the platform.


3.2.5 IG900-Series Routers

1. Use a network cable to connect a PC to the GE0/2 port of the router, and access 192.168.2.1 in the browser.

2. On the login page, enter the initial login information to go to the web page of the router. The default login account is adm and the password is 123456.

| Caution: To ensure security, it is recommended that you change the default login password after the initial login, and properly keep the password.

3. On the web page of the router, choose System>InHand Cloud and complete the following settings:

1. On the InHand Connect Service tab page, set Server Address to ics.inhandnetworks.com and Registered Account to the email account that you use to register the InConnect account. If you do not have an InConnect account, click Sign up/Sign in to register an account, and specify Registered Account here.

2. Click Submit. The router starts to setting up a connection with InConnect. After the connection is set up, the following message is displayed on the status bar: "Status: Connected; State Description: Connection Accepted".



3.2.6 VG710-Series Routers

1. After connecting a router to a PC, access 192.168.2.1 in the browser.

2. On the login page, enter the initial login information to go to the web page of the router. The default login account is adm and the password is 123456.

| Caution: To ensure security, it is recommended that you change the default login password after the initial login, and properly keep the password.
3. On the web page of the router, choose Administration>Device Manager and complete the following settings:

1. Select Device Manager Enable.

2. Set Service Type to InConnect Service.

3. Set Server Address to ics.inhandnetworks.com.

4. In the Registered Account text box, enter the email account that you use to register the InConnect account. If you do not have an InConnect account, click Sign up/Sign in to register an account, and specify Registered Account here.


5. Click Apply & Save. If the status displayed on the Status tab page is Connected, the router is connected to InConnect. If the status is Registering, please check whether the router has been added to the platform.





3.3 Check the connection between the router and InConnect

After the router is added to the platform and InConnect is configured on the router, check the online and VPN status of the router.

1. After the router connects to the platform successfully, the online status of the router is displayed in green.


2. When the router's VPN is successfully established, its VPN status will be shown in green. If the connection between the device and the platform is online, but the VPN is offline, you can try to connect to the VPN again by manually triggering. Click "Send running Config" in the operation column of the "Routers/Gateways" page.



4. Using the Client

InConnect automatically creates a secure connection channel for the connected router. You can install and configure the client on a local PC or a mobile phone to access the secure connection channel. Then, you can use the virtual IP address to remotely access the router and its downstream devices, implementing remote access and control of onsite devices.


4.1 Installing and Using OpenVPN in Windows

1. Download the OpenVPN client to InConnect and install the client.


2. In the Users list of InConnect, download the configuration file.


3. Run the OpenVPN GUI as administrator. Right-click the icon  in the lower-right corner, and choose Import file from the shortcut menu to import the configuration file to the OpenVPN client.


4. Click Connect. When the icon turns green , the current user is connected to the secure connection channel.

5. Test whether the virtual IP address of the router can be accessed.

  1. The IP address cannot be pinged if Windows Defender Firewall is enabled. It is recommended that you disable the firewall or enable ICMP first.


  1. Open Command Prompt of Windows, and ping the router’s virtual IP address 10.16.0.3. You can obtain the virtual IP address by dragging the scroll bar on the Sites page of InConnect.
  2. If the IP address can be pinged, the current user is connected to the remote router, as shown in the figure below.



4.2 Installing and Using OpenVPN in Android

1. Scan the QR code in InConnect to download the OpenVPN client of the Android edition.



2. Install the client. The running page is as follows:

3. Download the OpenVPN configuration file from InConnect and send the file to your mobile phone.

4. Tap FILE, select a configuration file, choose IMPORT>ADD, and toggle on the OpenVPN profile.

5. After OpenVPN is connected, launch the ping tool of the mobile phone, enter the router’s virtual IP address, and test whether the address can be pinged. If the address can be pinged, the current user is connected to the remote router.



5. Connecting the Router’s Downstream Devices

You can add downstream devices of the router to InConnect so that you can remotely access and control these devices. After a downstream device is added, InConnect automatically delivers the running configuration to create a secure network connection.

InConnect supports two access modes: access through the virtual IP address and access through the real IP address. The details are described below.


5.1. Access Through the Virtual IP Address

InConnect automatically maps an added downstream device (such as the PLC) to a virtual IP address. This auto mapping mechanism can prevent access conflicts. When you are not demanding on management and usage of real IP addresses, it is recommended that you use this access mode because it is more convenient. Access through the virtual IP address is also the default access mode of InConnect.

[Operation method 1]

1. On the Sites page, choose End Devices>Add.



2. Enter the name and real IP address of the downstream device, and select the site of the device, that is, the device name added to the site.

 3. Click Submit, and check the result. InConnect automatically maps the downstream device to a virtual IP address. You can add a maximum of 254 downstream devices foreach router. As shown in the figure below, the real IP address of the downstream device on the Device01 site is 192.168.2.215, and the mapped virtual IP address is 10.16.46.1.



[Operation method 2]

1. On the Sites page, click the router name of the target downstream device.

2. Go to the router management page.



3. Choose End Devices>Create, enter the related information, and click Submit.

 4. InConnect automatically maps the downstream device to a virtual IP address. Here, the allocated virtual IP address is 10.16.34.1.



5. After you install the client on the local PC, create and configure a connection. Then, ping the virtual IP address of the downstream device to check whether this device can be remotely accessed. If the virtual IP address can be pinged, the remote access is successful. Now you can use the virtual IP address to remotely access the router and its downstream devices such as PLCs and HMIs through the InConnect maintenance channel.




5.2 Access Through the Real IP Address

In addition to the virtual IP address, InConnect also allows you to access downstream devices such as PLCs using the real IP addresses. When you are very demanding on management and usage of real IP addresses, it is recommended that you use this access mode. If you use this access mode, pay attention to the IP conflict issue.

1. Choose Sites>Routers, and select the target device name to go to the device management page.

2. Select Enable real IP access, and configure the network segment of the target downstream device.



3. Add the downstream device that needs to be accessed through the real IP address.

4. Test the network connection through the real IP address.

In this access mode, the IP address used is decided by you on site, and duplicate IP addresses will result in access conflicts. To avoid this problem, you can use the "Networks" module of InConnect. For details about this module, see 6. Network Management.After enabling real IP, both the virtual IP and real IP can be used to access the downstream  device.


6. Network Management

6.1 Configuring a Mesh Network

Mesh networks are used to remotely maintain connections with devices, such as PLCs, HDMIs, and cameras.


All the newly-added routers are in Default Network, which is a mesh network. For all routers in a mesh network, real IP access can be enabled, after which IP conflicts will be detected. If duplicated IP addresses are found, a new mesh network must be created to configure the real IP address of the router. Alternatively, you can enable or disable real IP addresses to avoid the conflicts and implement access through real IP address on demand.

You can also use the "Networks" module to implement authority control of network access. The details are described below.

6.1.1 Adding a Mesh Network

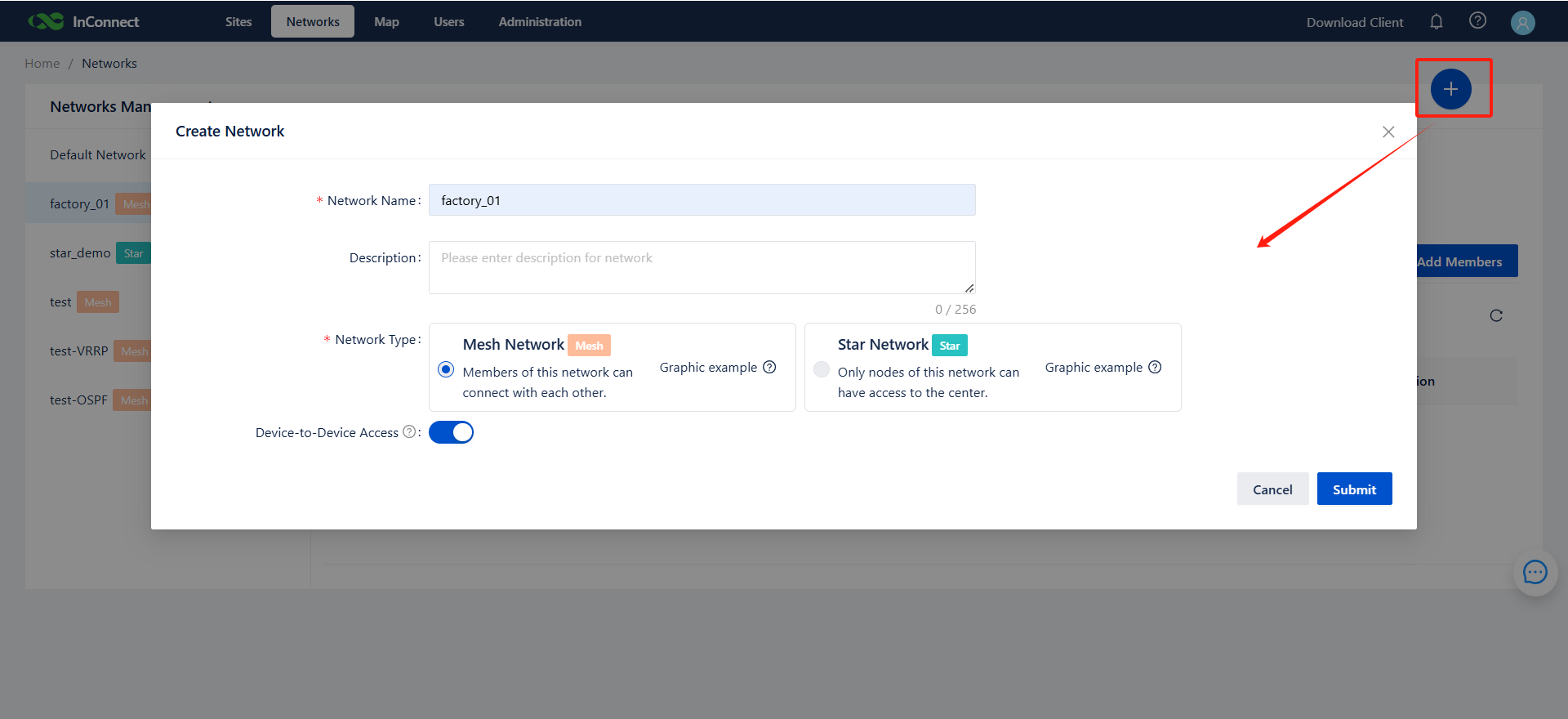

1. Select Networks, and click + to add a network.


2. Enter the network name, select the network type Mesh Network, and click Submit.

3. Select the Device-to-Device Access switch.

4. Select the network members and sites, and click Submit.

| Device Inter-Access Switch Description:
  1. You can turn on the Device-to-Device Access function when you need routers/terminal devices within your network to be able to access each other.
  2. For security requirements, you can also choose to turn off the Device-to-Device Access function. When turned off, routers in this network will not be able to access each other, nor will routers and terminals in another router, but users in the network can still access all routers and terminals in this network.
  3. By default, routers and terminals in the Default Network can visit each other, and it is not supported to change it.


4. The Network Management page is displayed.


| Caution:
  1. A mesh network isolates network access, that is, only users and site devices in the same mesh network can communicate with each other. Users in a mesh network cannot access site devices of another mesh network, and site devices in this mesh network also cannot be accessed by users of another mesh network.
  2. Default Network is a mesh network. All the newly-added router sites and users are in Default Network. Only users and route sites in Default Network support mutual access.
  3. Configuration of multiple mesh networks can prevent conflicts of real IP addresses. When a user needs to use the real IP address to access multiple terminals with the same real IP address, use either of the following management methods:
    1. The user and all terminals are in the same mesh network. When necessary, the user enables the real IP address of a site on demand to avoid the IP conflict.
    2. Add the terminals with the same real IP address to different mesh networks. When necessary, add the user to the corresponding mesh network to obtain the access permission, which avoids the IP conflict.


6.1.2 Adding a Site or User to a Mesh Network

1. Select the target mesh network, and click Add Members.


2. Select the user name and site name, and click Submit. If an IP conflict occurs between the real IP-enabled router and any other routers in the mesh network, this router cannot be added to the mesh network.


3. Check all sites in the mesh network, and select Sites.


4. Check all users the mesh network, and select Users.


| Caution：

  1. If an IP conflict occurs between the real IP-enabled router and any other routers in the mesh network, this router cannot be added to the mesh network.
  2. 192.168.2.0 already exists in the mesh network. If the IP address of the device to be added is also 192.168.2.0, an IP conflict occurs and therefore this device cannot be added to the mesh network.


6.1.3 Move Sites/Users

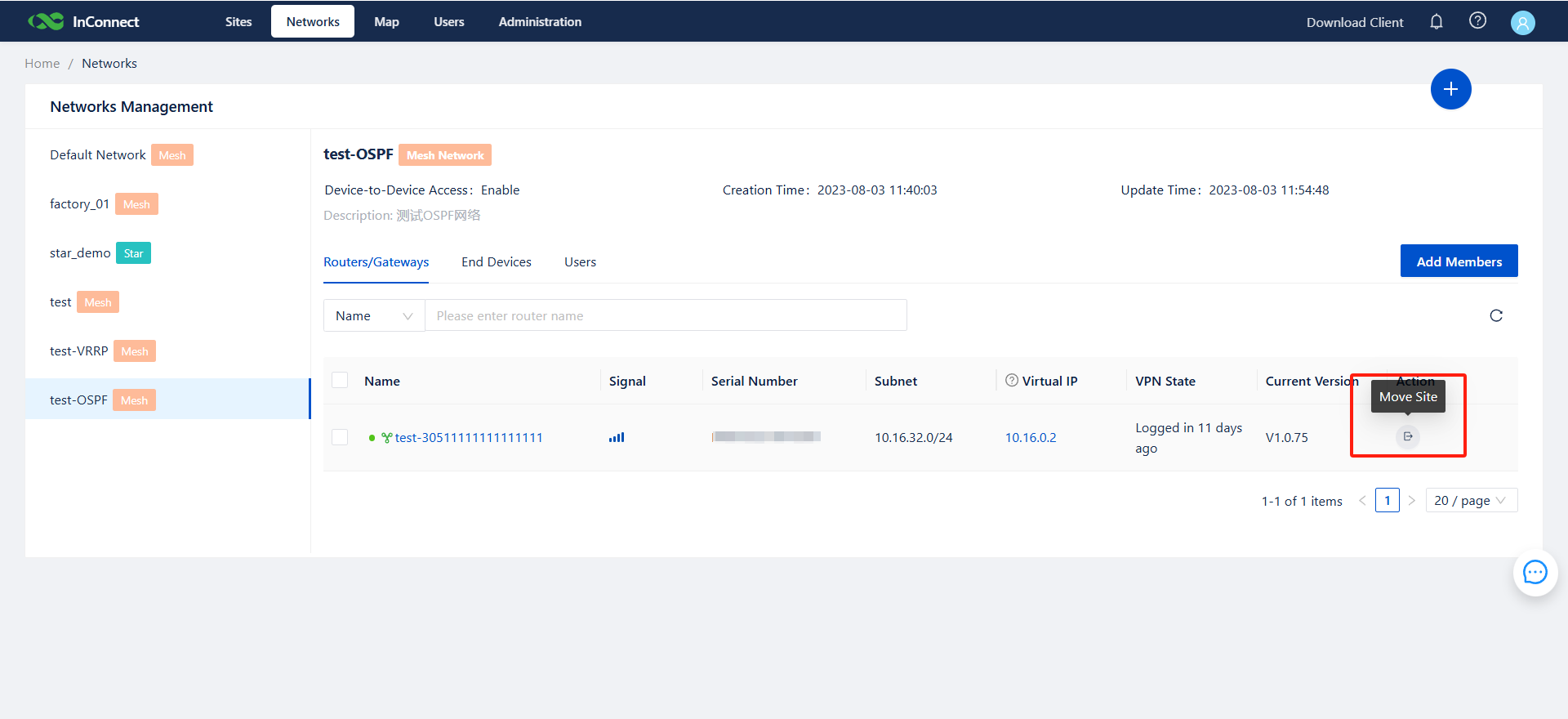

1.Move Sites：Select “ Routers/Gateways >> Move Site ” in the Network Management page,  and select the network you want to move to and confirm.

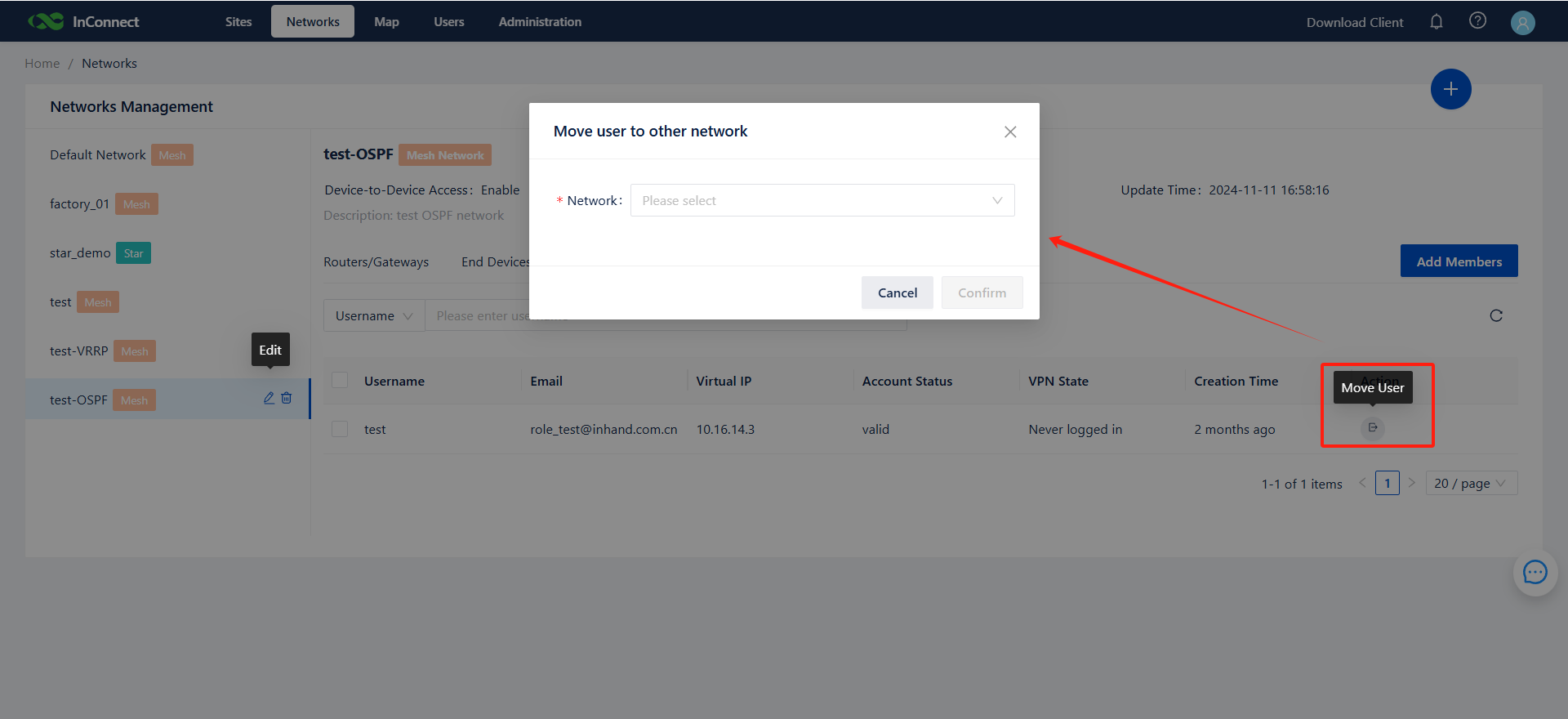

2.Move Users: Select “ Users >> Move User ”,  and select the network you wish to move to and confirm.

| Caution：

  1. If an IP conflict occurs between the real IP-enabled router and any other routers in Default Network, this router cannot be removed from the existing mesh network. For example, 192.168.2.0 already exists in Default Network. If the IP address of the router to be deleted is also 192.168.2.0, an IP conflict occurs and therefore this router cannot be removed from its existing mesh network.
  2. When multiple VPN Servers exist in an organization, moving users to other networks may require re-downloading and using new VPN config profiles. It is recommended that you plan your network well in advance.

6.1.4 Deleting a Mesh Network

1. Before deleting a mesh network, delete all users and sites in the mesh network.

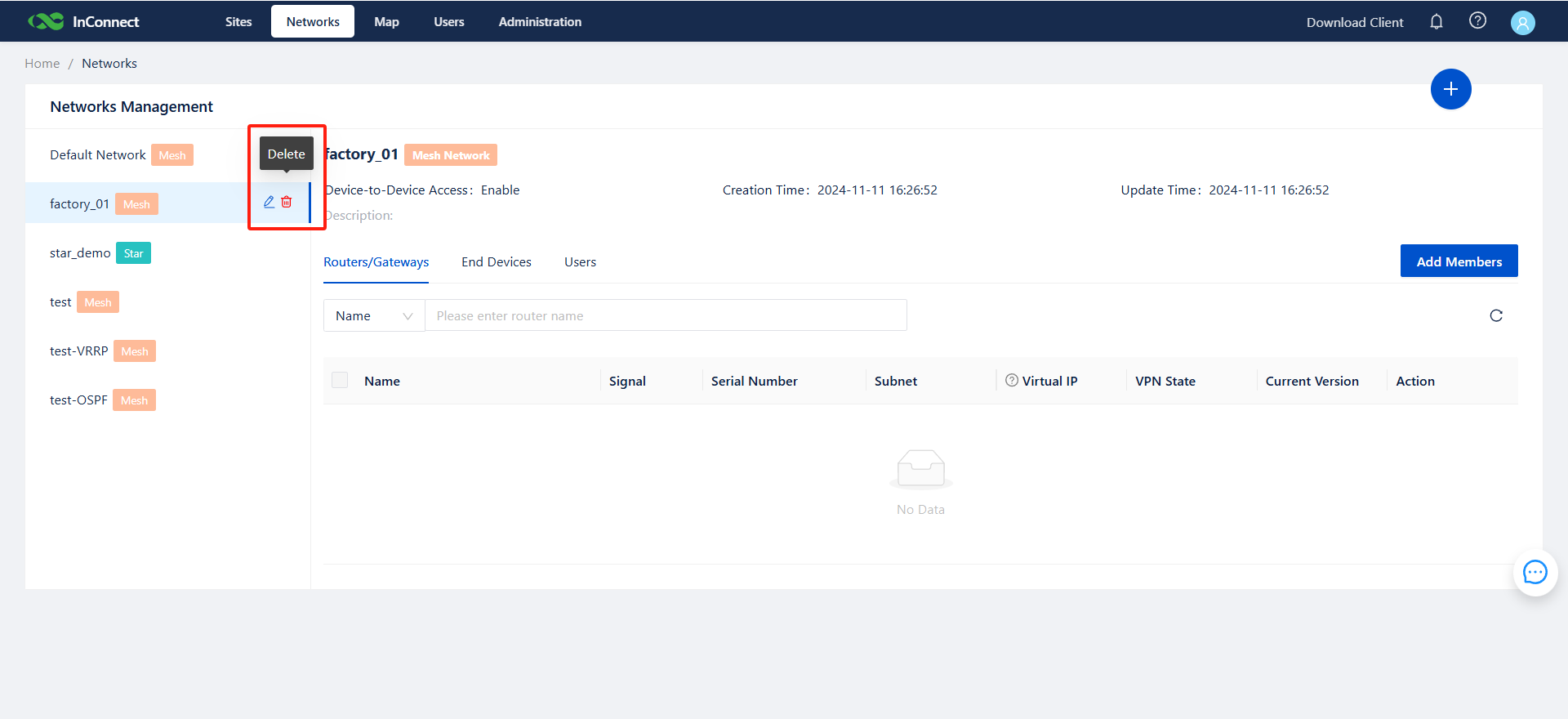

2. Select the target mesh network name, and click the Delete icon to delete the mesh network.



6.2. Configuring a Star Network

The star network is used for telecommuting. It allows you to access servers in the company's intranet through the InConnect channel when you are at home or on a business trip.

The star network is only applicable to the telecommuting scenario. If you need to remotely access onsite devices such as PLCs, select Mesh Network.



6.2.1 Adding a Star Network

1. Select Networks, click +, enter the network name, select Star Network, enter the center IP address, and click Submit.


2. Select the user name and site name, and click Submit.

3. Check the information about the newly created network.


4. Use the WAN port of the router to access the network. Check the network information obtained through the WAN port.

5. Use the OpenVPN client to access the network segment of the WAN port of the router. Note: Ensure that you enable the OpenVPN connection .



6.2.2 Adding a Site or User to a Star Network

1. Choose Networks>Add Members.


2. Select the user name and site name, and click Submit.

3. Check the information about the added network.



6.2.3 Deleting a Star Network

1. Select Networks, and click the target network name in the Network Management list.

2. Select Sites, and click the Remove site icon.

3. Select the target network name, and click the Delete icon to delete the star network.



7. User Management

7.1 Adding a user

1. Click Users and then Add to create an account for another system user.



2. Fill in the information of the added user.



| Caution:

Login Permission: indicates whether to allow the user to log in to InConnect. After a user with Login Permission set to Allowed is added, InConnect will send an email containing the login information to the mailbox of the user. If you want to create an account that can only be used to access the network but cannot log in to InConnect, set Login Permission to Not Allowed.

7.2 External User

When you need external support from an InConnect user or an enterprise user who has an email account with InConnect, you can invite them to join your organization by adding an External User.

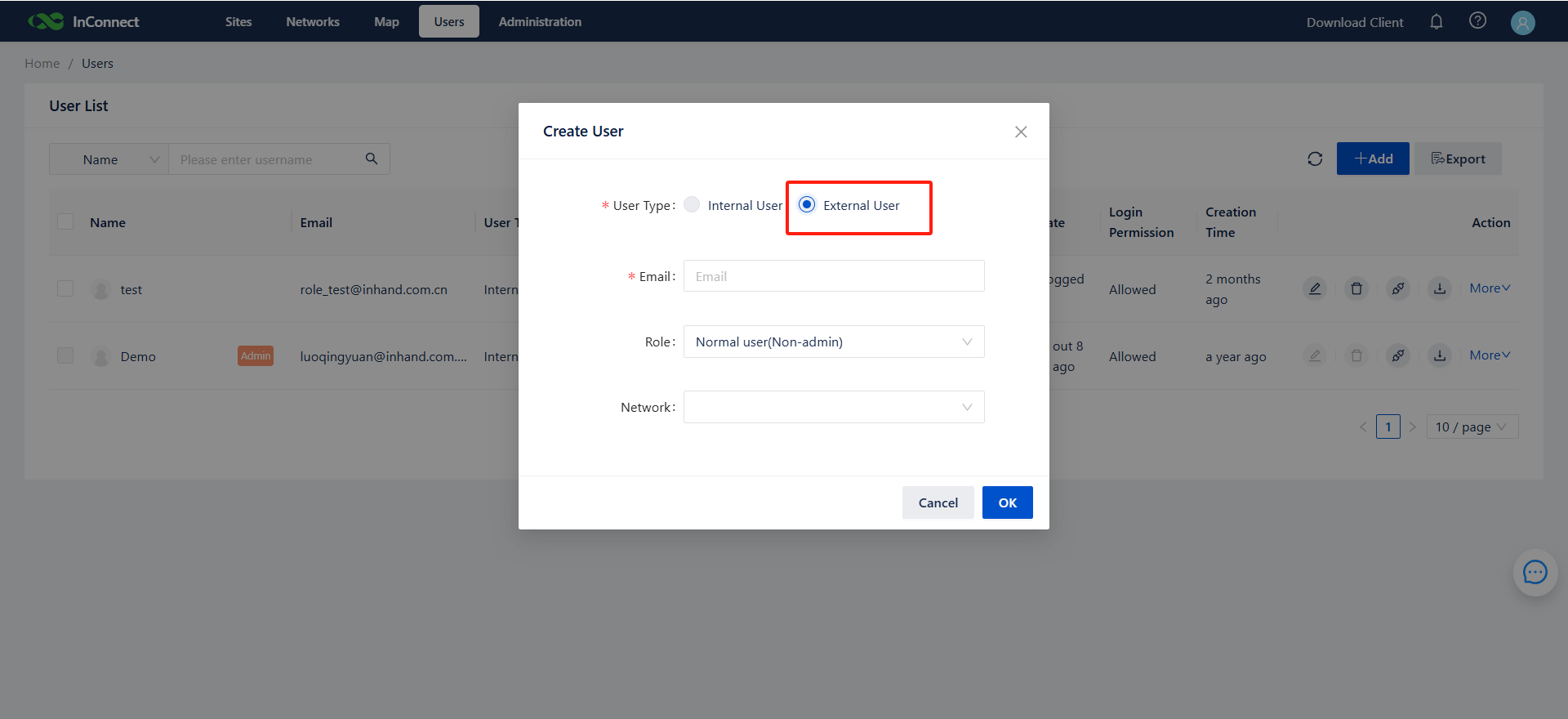

In the Users menu, when adding users, select User Type as External User, fill in the email address of the external user and click OK. The invitation email to join the organization will be sent immediately.
After the external user accepts the invitation, they can join your current organization, and at the same time, they can switch to multiple organizations in the personal center of the external user.

7.3 Role description

InConnect supports two user roles that have different permissions on system functions.
  1.  Administrator: has the permission to view all the data and the network management permission.
  2. Common user: only has the permission to perform basic operations on the devices in the specified type of network.

7.4 Multi-terminal description

  1. If Multiple is enabled for a user, the user can access remote devices on multiple terminals in a secure manner.
  2. The virtual IP addresses of multiple terminals are different. Therefore, after Multiple is enabled, the Virtual IP column is no longer displayed on the web page.



8. Router/Gateway Management

8.1 Router Details

  1. Click Sites, and select a router name on the Routers page to check the router details.
  1. You can perform operations on online routers, such as remote web management, remote configuration, forced offline, and firmware upgrade



8.2 Remote Web Management

  1. You can access the router’s web management page remotely through InConnect.
  2. Click  to go to the router’s web management page, and perform remote router management on this page.



8.3 Delivering the Connection Configuration

  1.  After a router or a downstream device is added, InConnect automatically delivers the running configuration to create a secure network connection.
  2.  When a router is online but VPN is in logout state, you can click the running configuration delivery button to set up the connection again.


8.4 Remotely Updating the Router Configuration

You can use this function to update the configurations of routers connected to InConnect in batches.

1. Adding a configuration template

a. Click Config and then +. Select a configuration file or enter the configuration content.

b. On the local management page of the router, you can download the original configuration file, modify the configuration file as needed, and then upload the file to InConnect to update the router configurations in batches.


2. Select the routers to which you want to deliver the configurations. Then, the configurations are updated in batches.

a. Online routers update their configurations as soon as they receive the configuration command.

b. Offline routers will update their configurations after they are online again.


3. On the configuration details page, you can view the update progress and status of all the routers to which this configuration is applied.


4. On the Configuration List page, you can view or delete a configuration or update configurations in batches.



8.5 Remotely Upgrading the Router Firmware

You can use this function to upgrade the firmware for routers connected to InConnect in batches.

1. Adding the firmware

Click Firmware and then +. Select the firmware you want to upgrade and click OK. The firmware is uploaded to InConnect.


2. In the router list, select routers, and click OK to upgrade the firmware of the selected routers.

a. Online routers perform the upgrade task as soon as they receive the upgrade command.

b. Offline routers will perform the upgrade task after they are online again.


3. On the firmware details page, you can view the firmware upgrade progress and status of the related routers.


4. On the Firmware List page, you can view or delete a firmware record or upgrade the firmware in batches.



8.6 Tasks

On the Tasks page, you can view the tasks delivered by InConnect to routers, and redeliver or cancel these tasks.



9. Consumption

  1. On the Consumption page, you can view the traffic consumed by a router or user to create the secure connection.
  2. The total connection duration and total traffic are updated every hour, and the detailed usage of routers and users is updated every minute.


10. Billing

  1. The InConnect service is billed based on the traffic that is used to create the secure connections between all clients and users.
  2. On the Billing page, you can recharge the account for the networking services provided by InConnect. Before payment, you must agree with the Payment Terms.
| Caution: To ensure normal service connection, InConnect provides a 10-GB traffic credit. If you do not recharge your account after the 10-GB traffic credit is used up, your InConnect service is suspended. After you recharge your account to the traffic credit, your service is restored immediately.

  1. After recharging, you can view your charges details on the Charges tab page or download the receipt to view your order details.
  2. InConnect updates your consumption logs periodically on theBilling page based on your usage.
  3. It sends a monthly bill through email on the first day of eachmonth, and the bill records your traffic consumption and billing information of the previous month.


11. Service Certificate

When you register an organization with the InConnect platform, the system will issue a certificate for your organization with a validity period of 30 years to guarantee that you can use the OpenVPN function of the platform.
When the certificate is about to expire, you will receive a certificate update reminder from the system. You can do the update by following these steps:

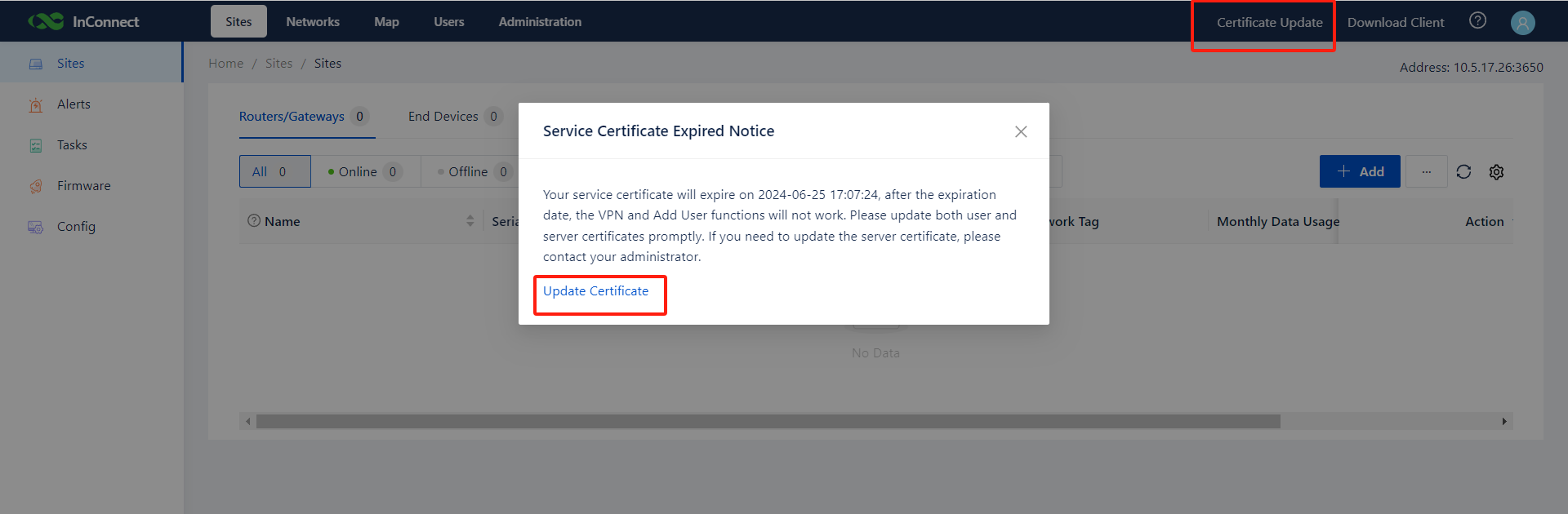

1. Log in to InConnect and enter the “Certificate Update” page through the notice pop-up window.

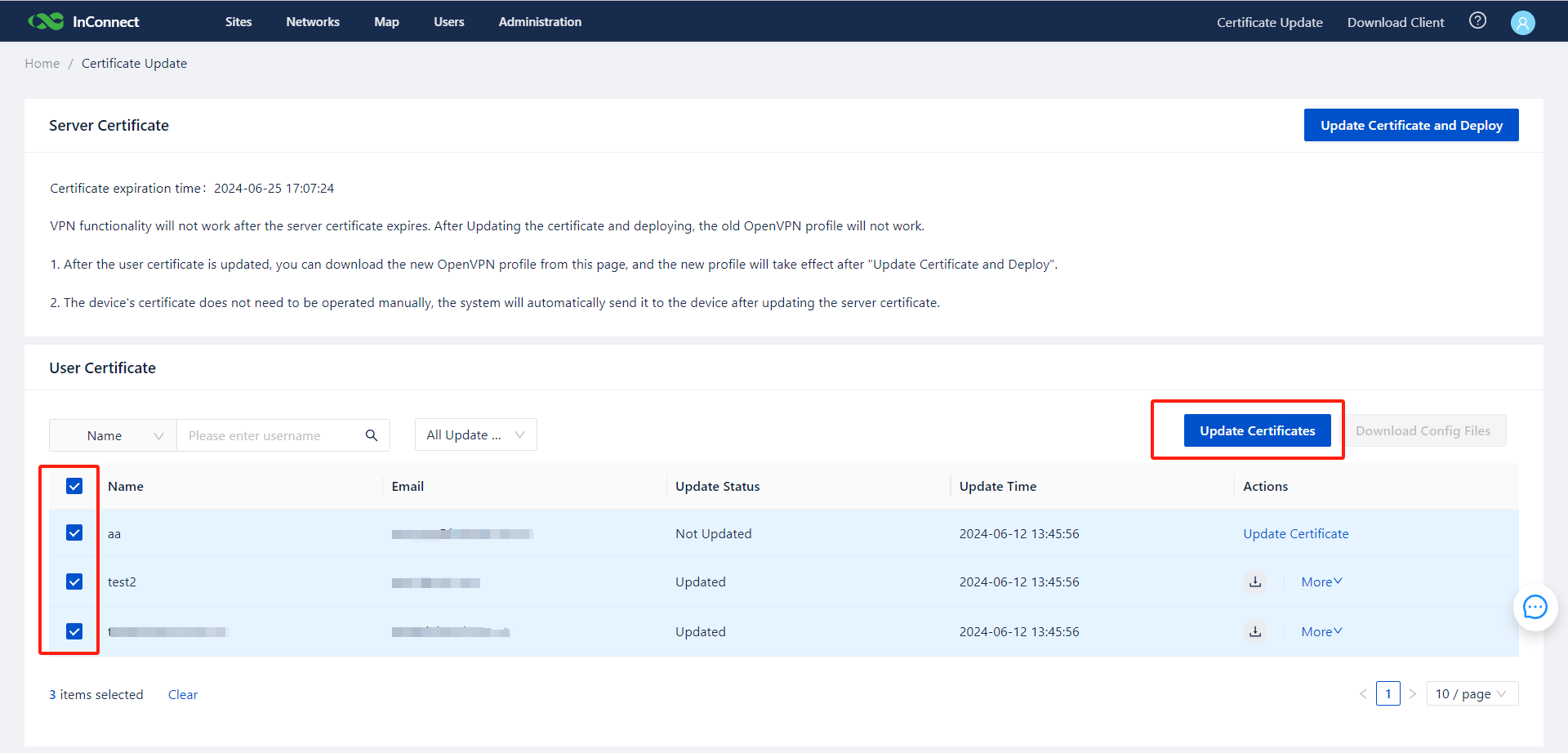

2.Select all users and click “Update Certificates”. After updating, you can download the new user OpenVPN profiles in this page to prepare for the replacement in advance.
| Caution: After the service certificate is updated, the OpenVPN configuration file before the update will not be available. Users need to download and use the new OpenVPN profile.

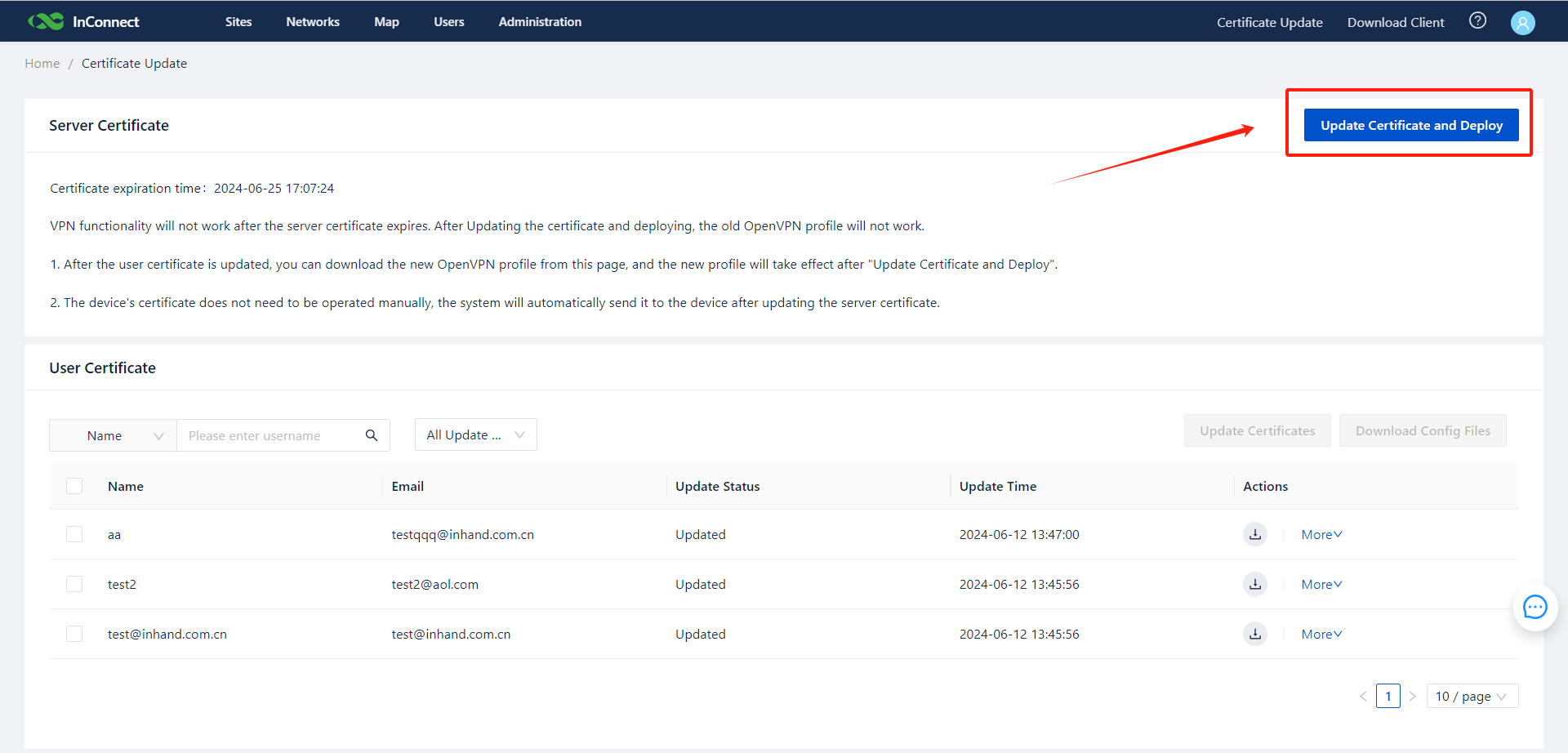

3.Click “Update Certificate and Deploy” and wait for the deployment to complete. Users can also choose to schedule the update.
4.The update is complete. Use the OpenVPN configuration file downloaded in step 2 for remote maintenance. You can also go to the user list to download it.

| Caution:
① You can download the latest user OpenVPN configuration after updating the user certificate to prepare for the change in advance.
②After updating the user certificate, the server certificate needs to be updated and deployed in order for the new OpenVPN profile downloaded on this page to take effect. The original OpenVPN profile is still available until the server certificate is updated.
③Only administrators have “Update Server Certificate and Deploy” permission.

FAQ

· Q1: How many user accounts and routers can I add to one InConnect account?

A1: You can add a maximum of 4,000 user accounts and routers. A router can connect to a maximum of 254 downstream devices.If your device can not be added properly or can not be assigned a virtual IP properly, please contact by e-mail: ics-service@inhand.com.

· Q2: How is the InConnect service billed?

A2: It is billed by the data traffic generated by the VPN channel communication between routers, end devices and users at a unit price of US$ 2.5/GB.

· Q3: What is the minimum monthly traffic for a router if it does not generate any traffic data and the network is normal?

A3: About 30-40 MB.

· Q4: Where is the InConnect server deployed? Amazon in U.S. and Amazon in China?

A4: For users in China, the server is deployed in Amazon in China. For users outside China, the server is deployed in Amazon in U.S. In addition, we have also deployed in Europe.


Appendix: Router Networking


Method 1: Access the network through dial-up or SIM card

The following takes IR915 as an example. For details about networking of other devices, see the hardware user manual or visit https://www.inhandnetworks.com/.

1. Insert the SIM card to the slot 1 and tighten the 4G LTE antenna to the ANT terminal.


| Caution: When inserting or removing the SIM card, you must disconnect the device from the power supply to avoid data loss or damage to the device.

2. Open the browser and log in to the device. (See Method 2: Ethernet).

3. Choose Network>>Cellular>>Enable. Wait until the network connection status is Connected and an IP address is allocated. Then, the network is connected through the SIM card. If a private network card is still used, fill in the dial-up parameter set.

4. When two SIM cards are inserted to the device, select Dual SIM Enable.


Method 2: Ethernet

The following takes IR915 as an example. For details about networking of other devices, see the hardware user manual or visit https://www.inhandnetworks.com/.

Disable the "cellular interface" when accessing the network without the SIM card; otherwise repeated dial-up is performed, interfering the network connection.


1. Connect the LAN (FE 1/1 or GE1/1) port to a PC and the WAN port to the Internet.


2. Set the IP addresses of the PC and router to be in the same network segment.

  1. Method 1: Automatically get the IP address (recommended)
  2. Method 2: Use a fixed IP address. Set the EF/GF ports of the PC and router to be in the same network segment. Set the initial IP address of the router to 192.168.2.1 and the subnet mask to 255.255.255.0. Select Use the following IP address. Enter an IP address ranging from 192.168.2.2 to 192.168.2.254, a subnet mask 255.255.255.0, and the default gateway 192.168.2.1, and then click OK.

3. In the address bar of the browser, enter the default gateway address 192.168.2.1 to enter the gateway web login page.

4. Enter the username and password and then click Sign In.


5. Choose Wizards>>New WAN. Configure an IP address for the WAN port to connect the router to Internet.


6. We recommend that you select Dynamic Address (DHCP). If you select Static IP Address, manually configure the network parameters and then save the configuration.


7. Choose Tools>>Ping. In the Host field, enter a common Chinese website to test whether the router can connect to the Internet. If the following figure is displayed, the router can connect to the Internet.


Method 3: Wi-Fi

The following takes IR915 as an example. For details about networking of other devices, see the hardware user manual or visit https://www.inhandnetworks.com/.

Disable the "cellular interface" when accessing the network without the SIM card; otherwise repeated dial-up is performed, interfering the network connection.

1. Use a network cable to connect the PC to the gateway LAN port, and connect the Wi-Fi antenna to the WLAN1/2 port.


2. Set the IP addresses of the PC and the router to be in the same network segment. (See Method 2: Ethernet).

3. Access the device web management page. (See Method 2: Ethernet).

4. Choose Network>>WLAN, select Client from Interface Type, enter the Wi-Fi parameters, and then click Apply & Save. Click the Status tab. The network connection status is Connected.

5. Choose Wizards>>New WAN, and configure the parameters.

6. Choose Firewall >> Network Address Translation (NAT). If a connection named dot11radio 1 is displayed, Wi-Fi is connected.


    • Related Articles

    • Device Manager User Manual

      1.About the Platform Device Manager ("DM") is an Internet of Things (IoT) device management cloud platform of the "new generation" independently developed and operated by InHand. With visual user interfaces (UIs) and easy-to-use processes, it allows ...

    • InCloud Manger User Manual

      About the Platform The InCloud Manager is a cloud-based network management platform. Integrating InHand edge routers and AP, it helps enterprises build a modern network environment and quickly realize digital retail and office. InCloud Manager ...

    • DeviceLive User Manual

      1. About the Platform DeviceLive platform is designed for the industrial IoT field to quickly build intelligent edge networks paired with InHand edge intelligent hardware. It has four major capabilities: device management, remote monitoring, edge ...

    • InLink User Guide

      1. InLink Introduction InLink is a cloud platform created by InHand Networks that is dedicated to SIM card management, aimed at providing users with convenient, fast, and secure SIM card management services. We offer the following services: Real-time ...
