Edge Gateway InGateway902

Quick Start Guide

Version 1.0, August 2024

www.inhand.com

The software described in this manual is according to the license agreement, can only be used in accordance with the terms of the agreement.

Copyright Notice

© 2024 InHand Networks All rights reserved.

Trademarks

The InHand logo is a registered trademark of InHand Networks.

All other trademarks or registered trademarks in this manual belong to their respective manufacturers.

Disclaimer

The company reserves the right to change this manual, and the products are subject to subsequent changes without prior notice. 9. We shall not be responsible for any direct, indirect, intentional or unintentional damage or hidden trouble caused by improper installation or use.

1 Product Introduction

InGateway902 (IG902) is a high-performance edge gateway for industrial IoT, which is powered by TI AM3352 industrial-grade processor with powerful performance. Compact size, rich interface, with convenient global cellular access. The IG902 supports secondary development using Python, and can be equipped with built-in InHand DeviceSupervisor™ Agent service, which supports hundreds of data collection protocols, making it easy to collect, process, and upload device data to the cloud, and also supports InHand DeviceLive cloud management, helping enterprises accelerate their digitalisation process.

2 Packing List

1. Standard Accessories


Number	Name	Quantity	note
1	IG902	1	IG902 Edge Computing Gateway
2	GPS Antenna	-	The number and type of antennas depends on the actual model
3	WLAN Antenna	-
4	Cellular Antenna	-
5	Rail Mounting Accessories	1	For fixing devices to rails
6	Industrial Terminals	1	7-Pin Industrial Terminal
7	Network Cable	1	1.5m network cable
8	Product Information	1	QR code scanning to view quick start guide, user manual
9	Product Warranty Card	1	Warranty period is 1 year
10	Certificate of Conformity	1	IG902 Edge Computing Gateway Certificate of Compliance

Number	Name	Quantity	note
1	Power Adapter	1	12V 2A Power Adapter
2	Wall Mounting Kit	1	The IG902 supports wall-mounting with backside lugs, and is shipped with the appropriate accessories for deployment scenarios where this mounting method is applicable.

3 Product Appearance

The panel layout of the IG902 is shown below:

3.1 Front panel

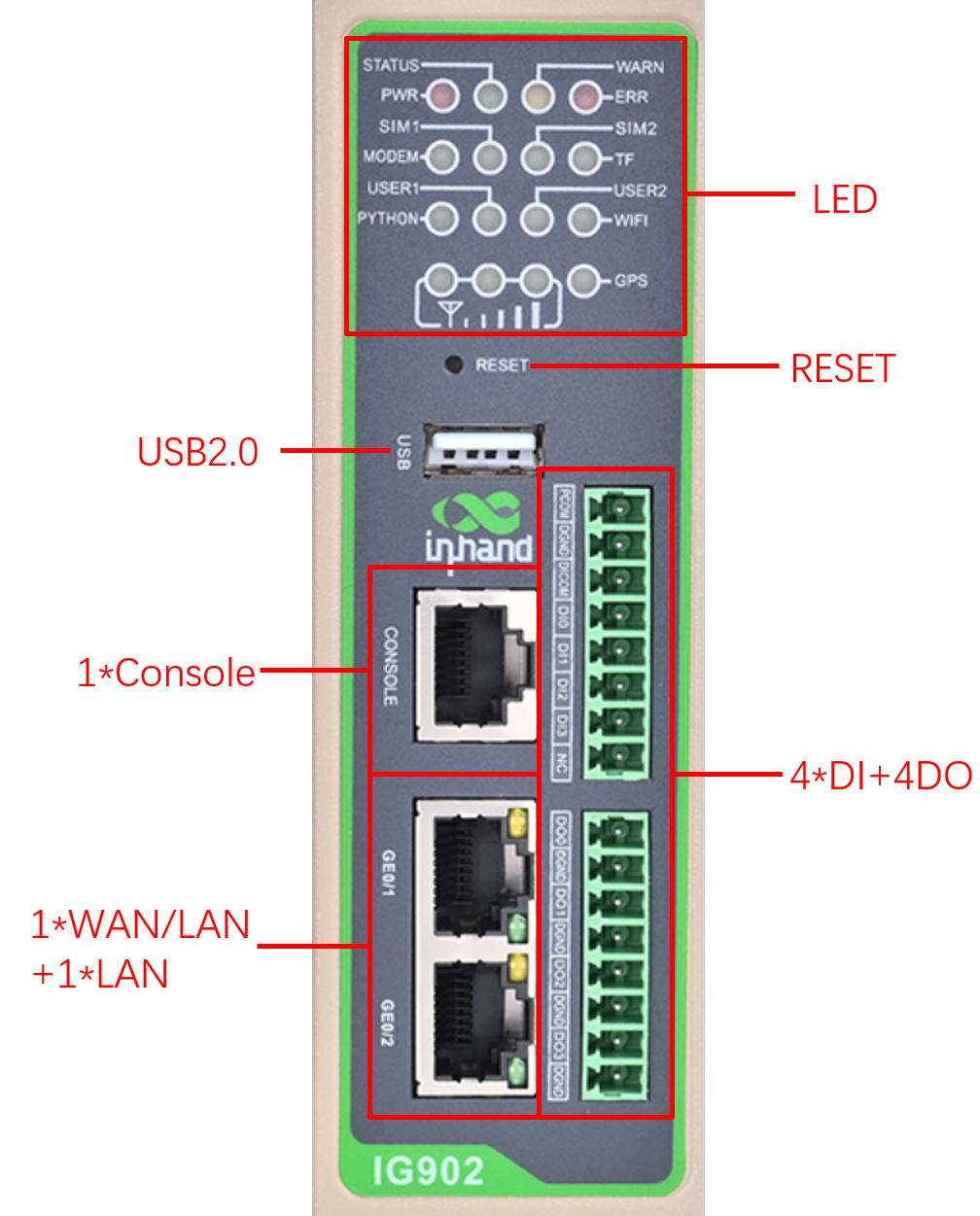

IG902 is divided into models with IO interface and without IO interface, and the front panel with IO interface is shown below:

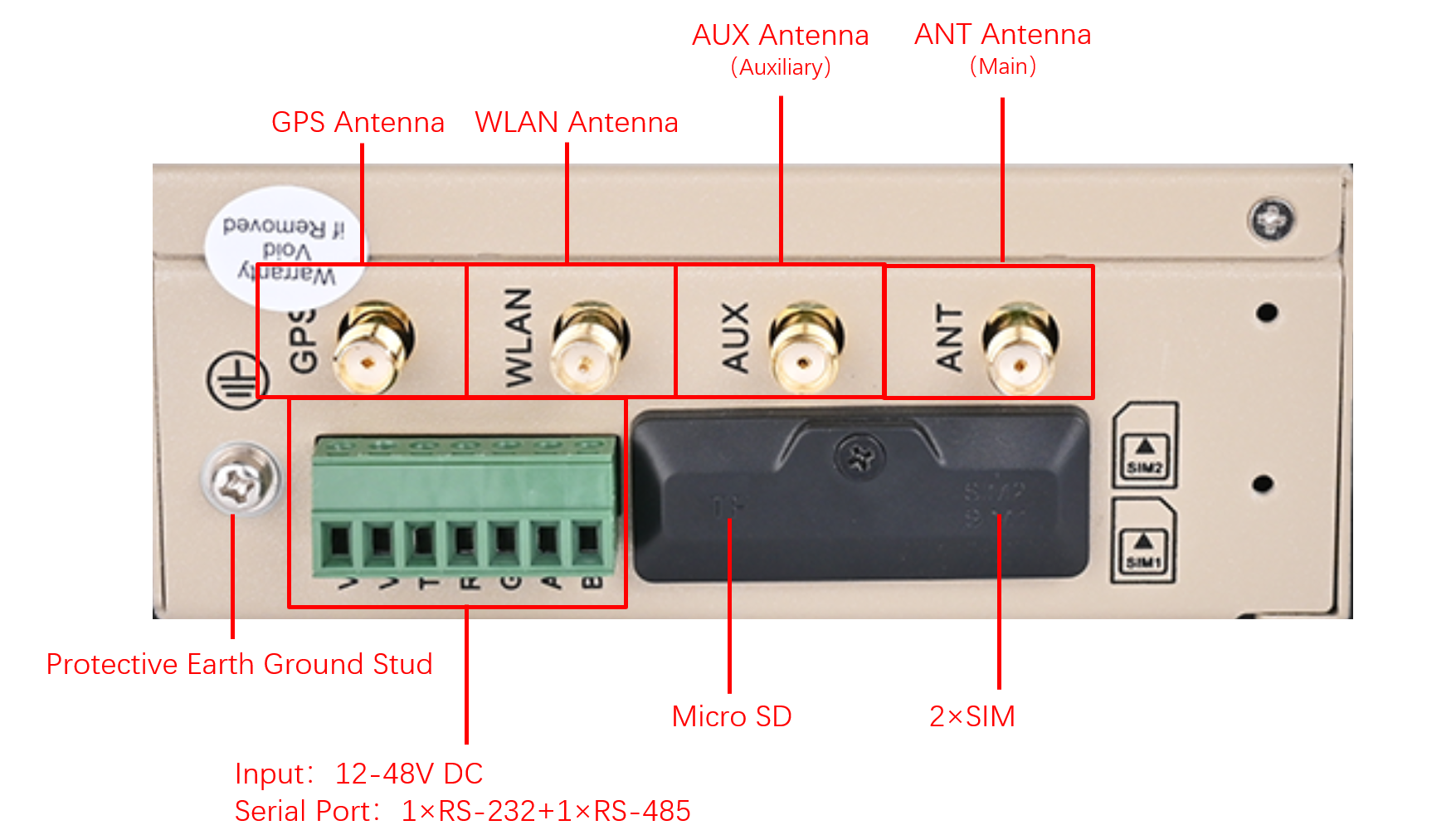

3.2 Upper panel

4 Indicator Description

5 Installing the IG902

5.1 DIN rail mounting and dismounting

5.1.1 DIN rail mounting

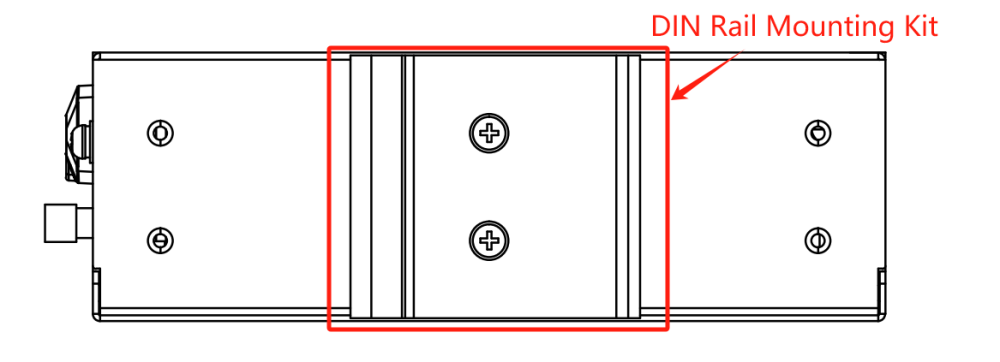

The mounting plate for the DIN rail is attached to the rear panel of the IG902 as shown below:

Installation steps are as follows:

1. Select the installation location of the equipment and ensure that there is enough space;

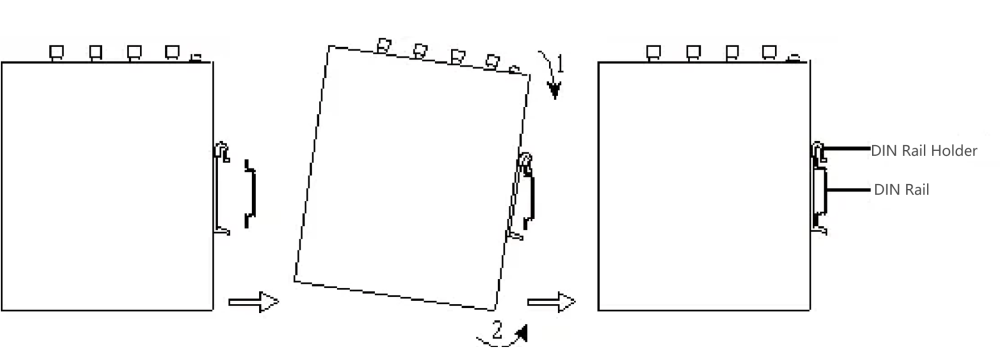

2. Snap the upper part of the DIN rail holder onto the DIN rail, and rotate the device at the lower end of the device with a little force upwards as shown in arrow 2 to snap the DIN rail holder onto the DIN rail, and confirm that the device is reliably mounted onto the DIN rail, as shown in the figure below:

5.1.2 DIN rail dismounting

The method of dismounting the IG902:

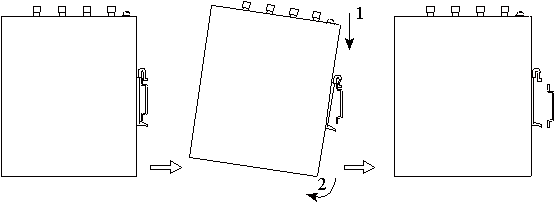

1. As shown by arrow 1 in the figure below, press down on the device to give clearance at the lower end of the device to disengage from the DIN rail.

2. Turn the device in the direction of arrow 2 and move the lower end of the device outwards at the same time. Lift the device upwards after the lower end is detached from the DIN rail to remove the device from the DIN rail.

5.2 Wall mounting and dismounting

5.2.1 Wall mounting

The specific steps for installing the IG902 are as follows:

1. Select the installation location of the equipment and ensure that there is enough space.

2. Use a screwdriver to mount the wall mounting plate on the back of the device as shown below

3. Take out the screws (packed with the wall mounting plate), fix the screws in the mounting position with a screwdriver, and then pull down the device to make the device in a stable state, as shown in the following picture

5.2.1 Wall mounted dismantling

To remove the IG902, hold the device with one hand and with the other hand remove the screws that hold the top end of the device in place to remove the device from its mounting position.

6 Connector Description

6.1 Ethernet Interface

The IG902 has 2 RJ45 Ethernet ports that support 10M/100M/1000M adaptive rates.The RJ45 pins are described below:

RJ45 Pin Number	10M/100M	1000M
1	TX+	TRD(0)+
2	TX-	TRD(0)-
3	RX+	TRD(1)+
4	-	TRD(2)+
5	-	TRD(2)-
6	RX-	TRD(1)-
7	-	TRD(3)+
8	-	TRD(3)-

6.2 Console Interface

The IG902 comes with one RJ45 Console interface, which uses the RS-232 communication standard. The pinout of the interface is described below:

RJ45 Pin Number	Name	Definition
1	CTS	Clear To Send
2	DSR	Data Terminal Ready
3	RxD	Data Received
4	GND	Ground
5	GND	Ground
6	TxD	Data Transmitted
7	DTR	Data Terminal Ready
8	RTS	Request To Send

6.3 DC Input/Serial Port

The IG902 supports 12-48V DC power supply. Plug the adapter terminal into the DC port of the IG902 and connect the power adapter. When the PWR power indicator lights up long it means the device has been powered up properly.

IG902 supports 2 serial ports, one RS-232 serial port and one RS-485 serial port.

The power supply and serial port use 7PIN terminals, and the interface pins are described below:

PIN Number	Name	Definition
1	V+	Power Positive
2	V-	Power Negative
3	TXD	Serial RS232 send
4	RXD	Serial RS232 acceptance
5	GND	Serial RS232 signal ground
6	A	Serial RS485+
7	B	Serial RS485-

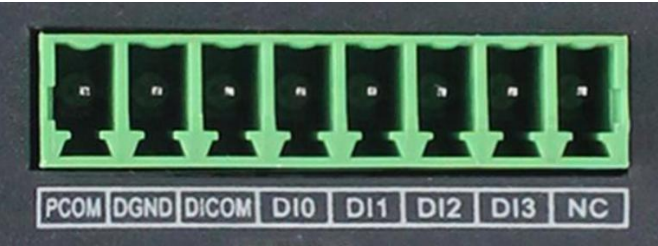

6.4 Digital Inputs

PIN Number	Name	Definition	Instruction
1	PCOM	Dry contact access terminal	Dry contact status "1": closed  Dry contact status "0": disconnected  Wet contact status "1":+10~+30V/-30 ~ -10VDC  Wet contact status "0": 0 ~ +3V/-3 ~ 0V  Isolated 3000VDC  Supports pulse counter function, up to 100Hz pulse signal.
2	DGND	Dry contact grouding terminal
3	DICOM	Input Common terminal
4	DI0	Digital/Pulse Input 0 Connector
5	DI1	Digital/Pulse Input 1 Connector
6	DI2	Digital/Pulse Input 2 Connector
7	DI3	Digital/Pulse Input 3 Connector
8	NC	None

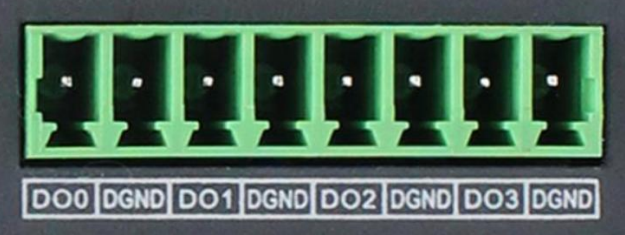

6.5 Digital Outputs

PIN Number	Name	Definition	Instruction
1	DO0	Digital/Pulse Output 0 Connector	Isolated 3000VDC
2	DGND	grounding terminal
3	DO1	Digital/Pulse Output 1 Connector
4	DGND	grounding terminal
5	DO2	Digital/Pulse Output 2 Connector
6	DGND	grounding terminal
7	DO3	Digital Output 3 Connector
8	DGND	grounding terminal

6.6 USB interface

The IG902 provides a USB 2.0 Host interface, which is mainly used for expanding storage devices.

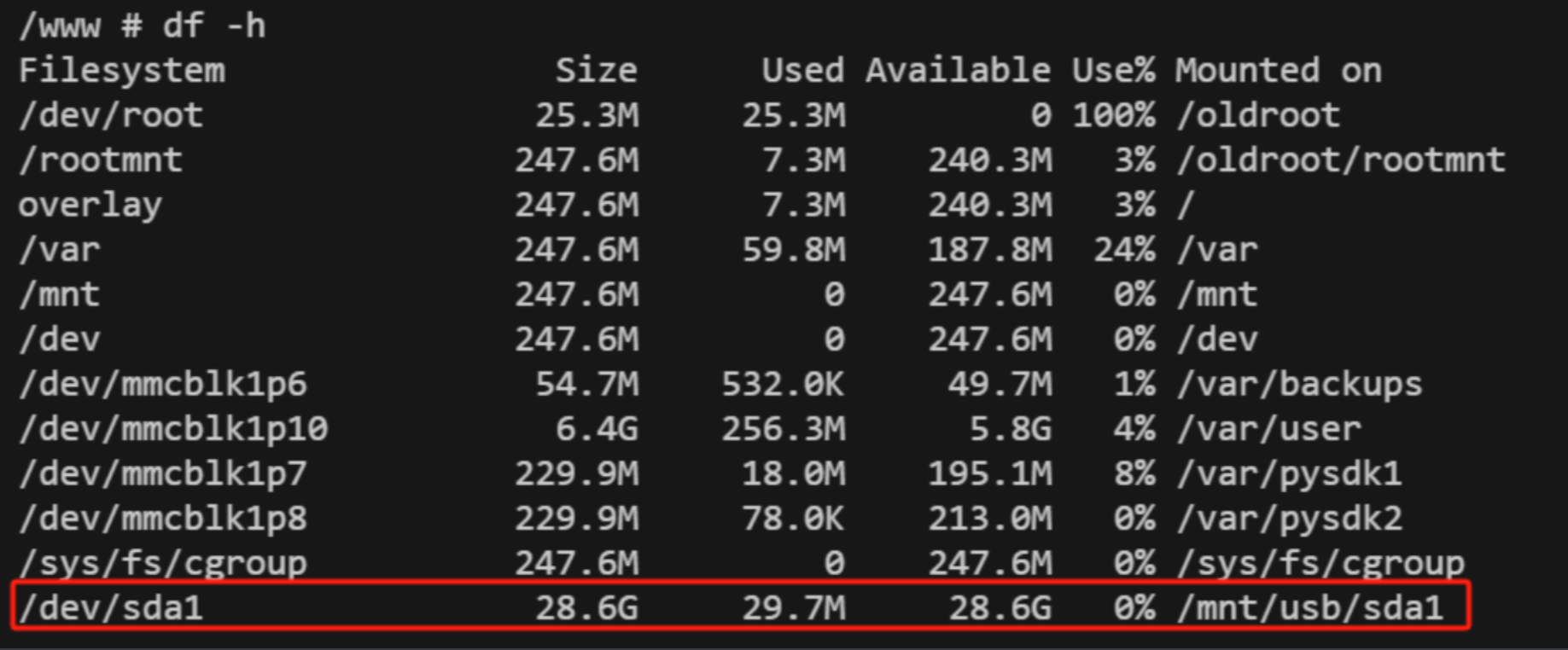

IG902 supports USB storage device hot-plugging. It will mount all the partitions automatically.IG902 will mount all the USB storage device partitions under the path /mnt/usb/sda1, and only the first partition of the USB storage device will be mounted.

ATTENTION:

Before disconnecting the USB mass storage device, remember to enter the sync command to prevent data loss. When you disconnect the storage device, exit from the /mnt/usb/sda1 directory. If you remain in /mnt/usb/sda1, the automatic uninstall process will fail. If this happens, type umount /mnt/usb/sda1 to manually unmount the device!

6.7 Micro SD

The IG902 has a Micro SD card. The SD card does not support hot plugging and needs to be operated when the power is off. It will automatically mount all partitions

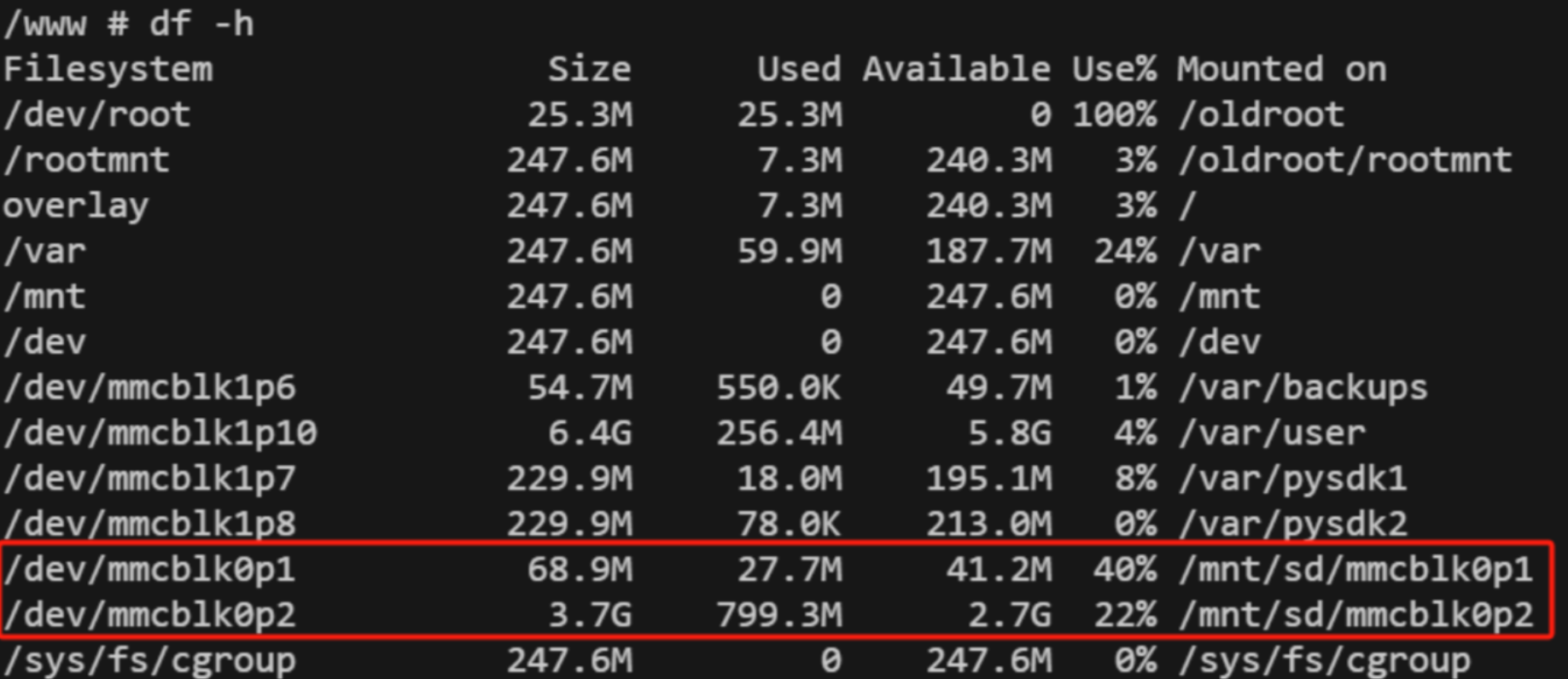

The IG902 will mount all partitions of the micro SD memory card to the /mnt/sd path. The naming format of the mounted folder is mmcblk0p<num>, where <num> is a number from 0 to 9

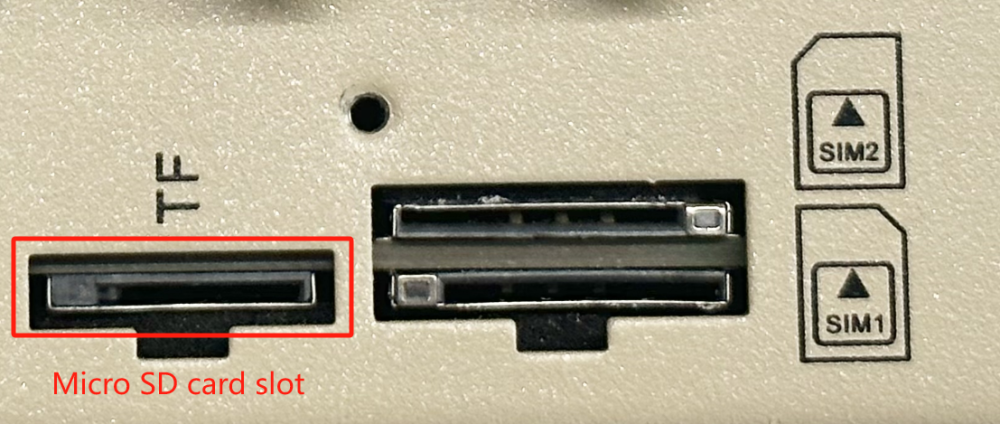

To install a Micro SD card, remove the protective case. Installing the Micro SD card into the IG902's SD card slot

6.8 SIM card slot

The IG902 is equipped with 2 drawer type SIM card slots for cellular communication, located on the upper panel. The installation procedure is as follows:

Step 1: The SIM card of IG902 needs to be installed in the case of power failure, please make sure that the device has been disconnected from the power supply before installation

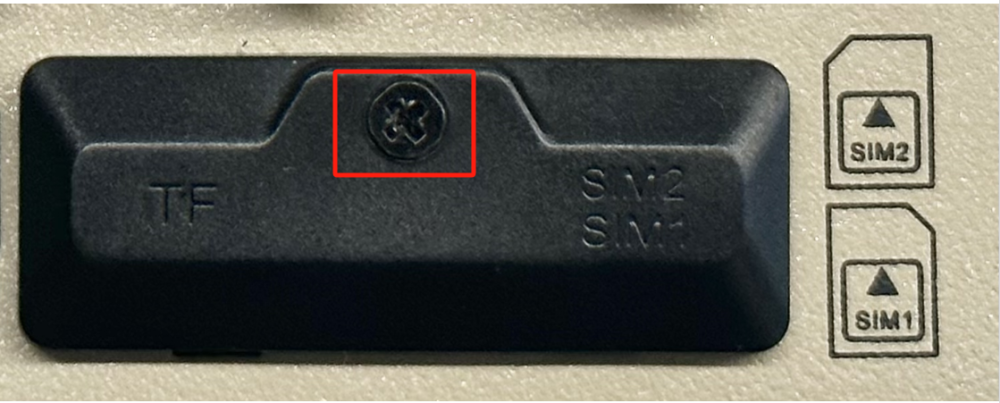

Step 2: The protective casing needs to be removed before installation

Step 3: Insert the SIM card into the drawer SIM slot

6.9 Antenna Interface

IG902 has 4 antenna interfaces, and different models are equipped with different numbers of antennas. The antenna support for specific models can be found in the "Ordering Guide" section of the IG902 Series Edge Gateway datasheet.

Identification	Name
GPS	GPS antenna
WLAN	WAN Antenna
AUX	AUX Antenna (Auxiliary Antenna)
ANT	ANT (Main antenna)

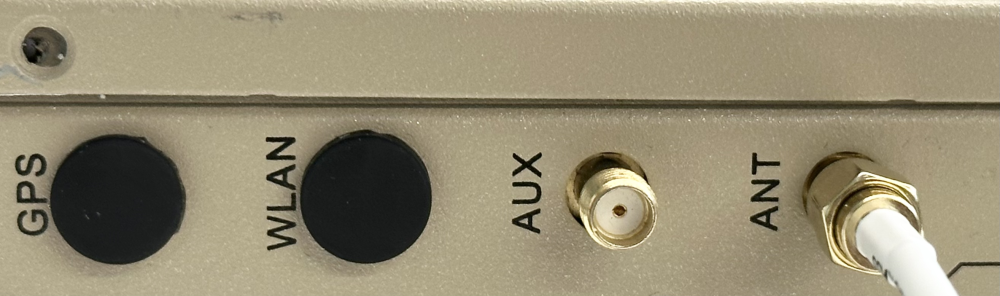

The product model shown below is IG902-B-LQA8, which supports two antenna interfaces, AUX and ANT. Screw the required antenna into the corresponding SMA antenna connector to complete the antenna installation, as shown in the following figure ANT.

6.10 Factory Reset Button

There is a reset button for restoring the system to the factory, and the procedure for restoring the factory device using hardware is as follows:

4. Step 1: Press and hold the RESET button for 10s after powering up the device;
5. Step 2: When the ERR light turns red, release the RESET button;
6. Step 3: After a few seconds when the ERR light goes out, press and hold the RESET button again without releasing it;
7. Step 4: Release the RESET button when you see the ERR light blinking; wait for the ERR light to turn off, indicating that the factory settings have been restored successfully.

7 Power and Environmental Requirements

Input Voltage	12-48 VDC (dual pin terminals, V+, V-)
Operating Temperature	-25-70°C (-13-158°F)
Storage Temperature	-40-85°C (-40-185°F)
Environmental Humidity	5~ 95% (without frost)

8 Access to IG902

Use the following default IP address to connect to the IG902.

Port	Default IP
GE0/1	192.168.1.1
GE0/2	192.168.2.1

Step 1: Interconnect the IG902 to the PC

Insert one end of the cable into any of the IG902's network ports as shown in the figure below, and the other end into the computer's network port, and set the computer's IP address to the same network segment address as the device interface.

Step 2: Network management and system management of IG902 via web

The IG902 supports WEB interface management based on IEOS, a set of network management and system management programmes developed by IEOS running on Linux system, which can provide web interface services. Take the network cable port plugged into GE0/2 as an example, the device login information is as follows:

Login: https://192.168.2.1

Initial login account: adm

Initial login password: check the nameplate on the device panel for the initial password information

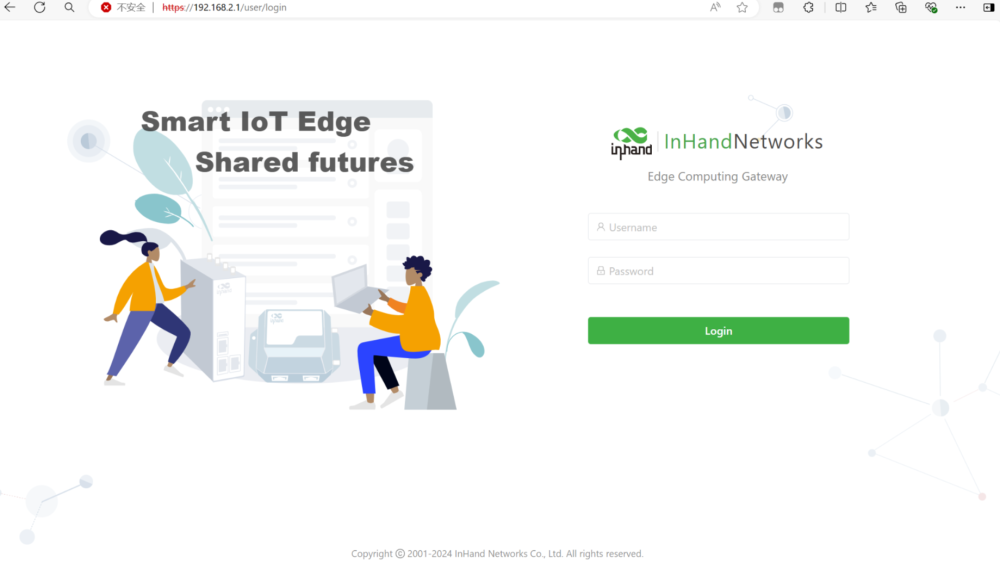

The following figure shows an example of using a WEB connection:
