EAP600 Product User Manual

EAP600 Product User Manual

 Declarations

Thank you for choosing our company's product! Before use, please carefully read this user manual. By complying with the following statements, you will help maintain intellectual property rights and legal compliance, ensuring that your user experience aligns with the latest product information. If you have any questions or need written permission, please feel free to contact our technical support team.

  1. Copyright Statement

This user manual contains copyrighted content, and the copyright belongs to InHand Networks Technology and its licensors. Without written permission, no organization or individual may excerpt, copy any part of the content of this manual, or distribute it in any form.

  1. Disclaimer

Due to ongoing updates in product technology and specifications, the company cannot guarantee that the information in the user manual is entirely consistent with the actual product. Therefore, no disputes arising from any discrepancies between the actual technical parameters and the user manual are accepted. Any changes to the product will not be notified in advance, and the company reserves the right to make the final changes and interpretations.

  1. Copyright Information

The content of this user manual is protected by copyright laws, and the copyright belongs to InHand Networks and its licensors, reserving all rights. Without written permission, the content of this manual may not be used, copied, or distributed without authorization.

Conventions

Symbol

Indication

[  ]

Referring to function modules or menus, such as in the [ Status ] menu."

“ ”

Referring to a button name, such as Clicking the “Add” button.

〉

Multiple levels of menus are separated by "〉". For example, "File〉New〉Folder" represents the "Folder" menu item under the "New" submenu, which is under the "File" menu.

Cautions

Please be mindful of the following points during the operation, as improper actions may result in data loss or device damage.

Note

Supplement and provide necessary explanations for the description of the operation.



Technical Support



E-mail：support@inhandnetworks.com

URL: www.inhandnetworks.com

1. Overview

The EAP600, developed by InHand Networks, is a Wi-Fi 6 Access Point designed for the commercial sector. This product delivers secure and high-speed network access, catering to a wide range of industries. Harnessing the robust network access capabilities of Wi-Fi 6, it provides a straightforward and efficient solution for small businesses, enterprise branches, hotels, and any other settings requiring wireless coverage with high-speed network access. With a comprehensive set of security features and intelligent software services, it ensures an efficient and worry-free networking experience, delivering a secure and dependable business data connection in wireless environments.

Fig. 1 EAP600 application scenario



2. Hardware

2.1 LED Indicators

LED Indicator

Status and Description

PWR

OFF --- The device is Off.

Blink in green --- The system is starting.

Blink in green rapidly --- The system does not work properly.

Blink in green --- The system is upgrading.



WAN

OFF --- The network is disconnected.

Blink in green --- The router is connecting to the wired network.

Wi-Fi 2.4G

OFF --- AP mode disabled.

Always on --- Other anomalies.

Blink in rapidly green --- The device functions normally as an AP.

Wi-Fi 5G

OFF --- AP mode disabled.

Always on --- Other anomalies

Blink in green rapidly --- The device functions normally as an AP.



Note: The rapid blinking occurs every 200ms, and the steady blinking interval is 500ms.

2.2 Perform a factory reset using the Reset button.

Step 1: Power on the device, and within 10 seconds, long-press the Reset button until the PWR indicator light rapidly blinks green with a 200ms interval.

Step 2: After the rapid blinking, release the Reset button and wait for the device to complete the factory reset process. The PWR indicator light will stay constantly lit, indicating that the factory reset is complete.

3. Default Settings

Function

Default Settings

Wi-Fi

1. The Wi-Fi 2.4 GHz access point (AP) is enabled, and its SSID is "EAP600–" followed by the last six digits of the wireless MAC address.

2. The Wi-Fi 5 GHz AP is enabled, and its SSID is "EAP600-5G–" followed by the last six digits of the wireless MAC address.

3. The authentication method is WPA2-PSK.

4. The two access points have the same password: The last eight digits of the router's SN.

Network access control

1. Local HTTPS service is enabled, using port 443.

2. The device management address is 192.168.10.1

Username and password


 adm/123456

4. Device Initialization Settings

4.1 Environment Setup

Step 1: Connect the power cable and Ethernet cable. When using PoE (Power over Ethernet) to power the EAP600, please ensure that the upstream device has PoE functionality enabled.

Step 2: Set the PC and device management IP addresses in the same network segment. The DHCP Server function is enabled by default, and the PC and device must be in the same address segment. The PC needs to be connected to the device’s Wi-Fi (SSID and password reference 3. Default Settings), and check whether the PC has obtained an address, which should belong to the 192.168.10.0 network segment.

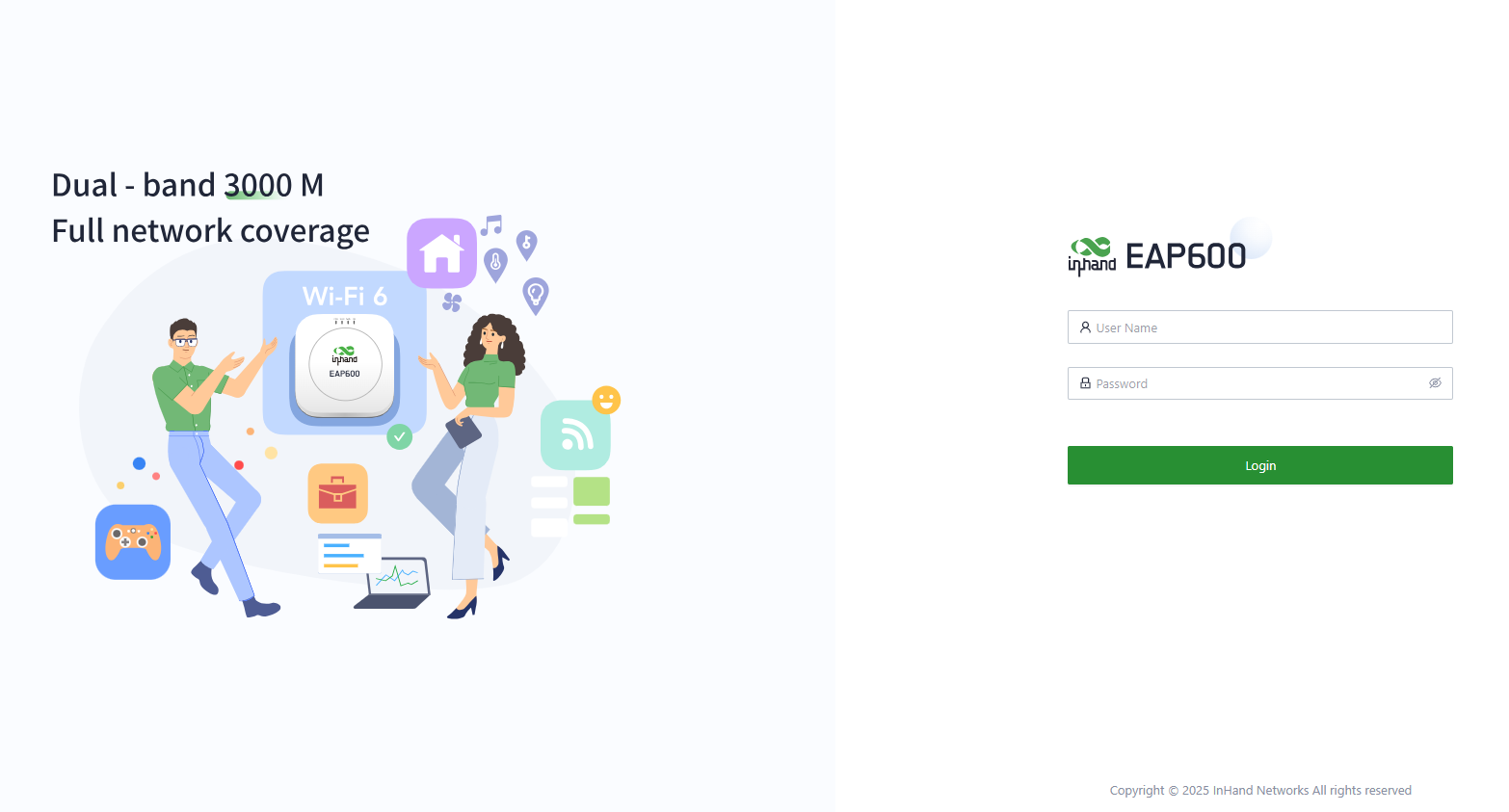

Fig. 4-1 EAP600 Web Login page

4.2 Internet Connection

The EAP600 supports single-port wired access, and you can configure it to use DHCP or static IP address assignment based on their requirements. Click on “Configuration > WAN” to select the network connection type.

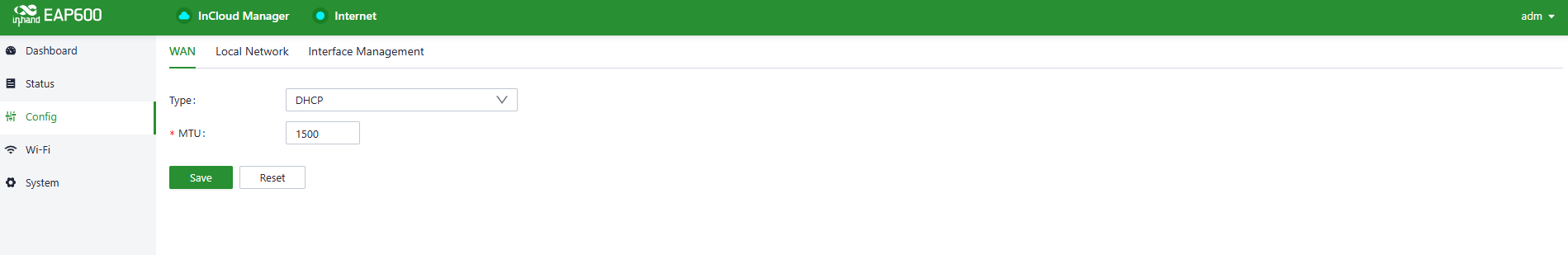

Fig. 4-2-a Access the WAN editing interface

  1. DHCP: The device's WAN interface is set to enable DHCP service by default. You can simply connect the WAN interface to the internet using an Ethernet cable to establish the AP's network connection.
  2. Static IP: You can manually configure the address assigned by the ISP or upstream device. After the configuration is completed, the AP will connect to the network using the specified static IP.

Fig. 4-2-b Configuring the AP to connect to the network via a static IP address

5. Management

Once the device is added to the platform, you can manage and monitor the network from the platform while also supporting users in remotely viewing real-time status information on the device's local interface.

5.1 Dashboard

Click on [ Dashboard ] in the left-hand menu to access the dashboard interface and view the device's basic information, operating mode, traffic statistics, Wi-Fi connection count, and other information.
You can click the icon next to the "Name" field to customize the name of this device.

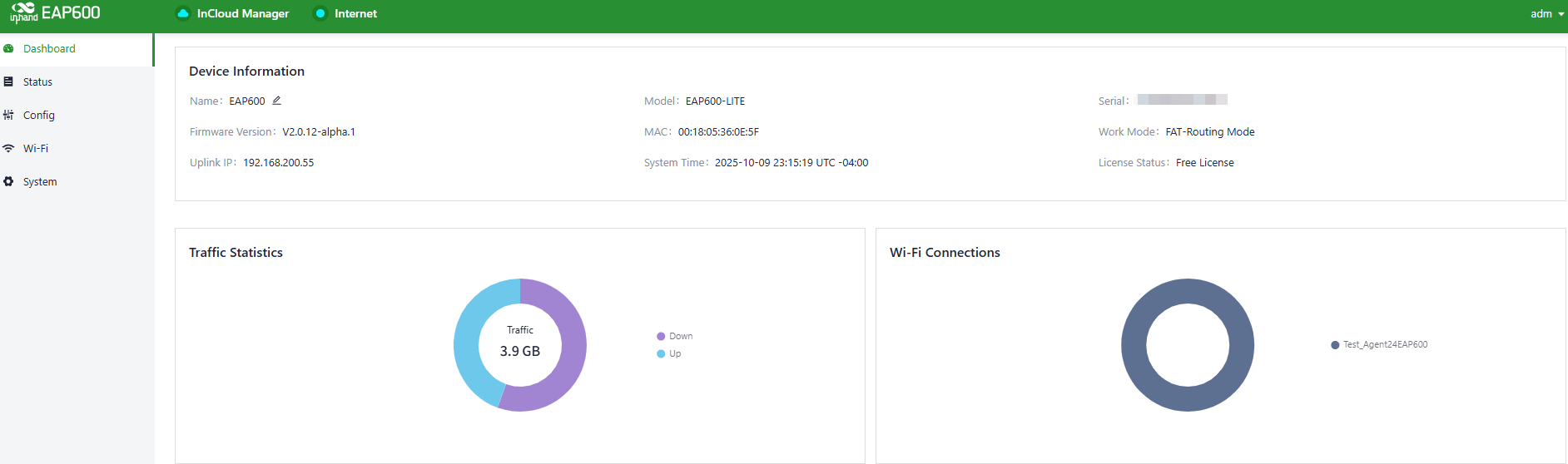

Fig. 5-1 Dashboard interface


5.1.1 Device Information

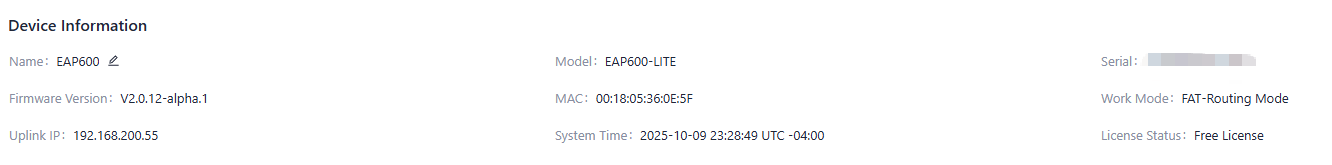

You can view basic device information in the "Dashboard > Device Info" interface, including the device name, device model, device serial number, MAC address, online duration, upstream interface address, and other details.

Fig. 5-1-1 Device Information interface

  1. Name: Identifies the device's name, which is initially set to "EAP600" but can be customized.
  2. Model: Identify the specific sub-model of the product.
  3. Serial: A unique code that serves as an identifier for the device and can be used for indexing or adding the device to a platform account.
  4. Firmware Version: Shows the device's current software version.
  5. MAC Address: Identifies the device's physical MAC address.
  6. Work Mode:EAP600 has two operational modes: FAT-Bridge and FAT-Routing.
  7. Uplink IP: The IP address of the upstream interface used for device internet connectivity.
  8. System Time: Displays the device's time zone and system time.
  9. License Status: Indicate the licenses applied to the product. The EAP600 product is now freely available to users

5.1.2 Traffic Statistics

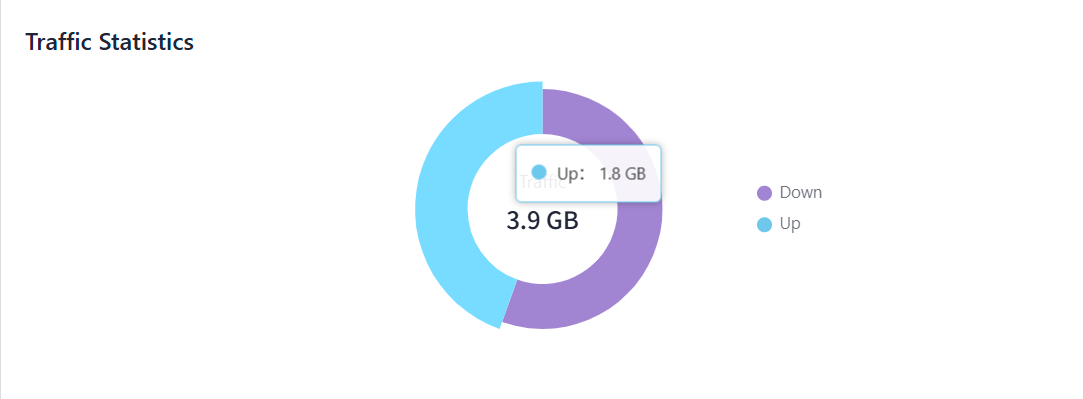

You can check the usage of traffic on various upstream interfaces since EAP600 was powered on through the "Dashboard > Traffic Statistics" feature. The data for traffic statistics will reset after the device is restarted. If you need to view historical traffic records, you can do so on the corresponding device's details page in the InCloud Manager.


Fig. 5-1-2 Traffic statistics

5.1.3 Wi-Fi Connections

You can view the number of active SSIDs and the client count for each SSID that is connected to the EAP600 through the "Dashboard > Wi-Fi Connections" feature.

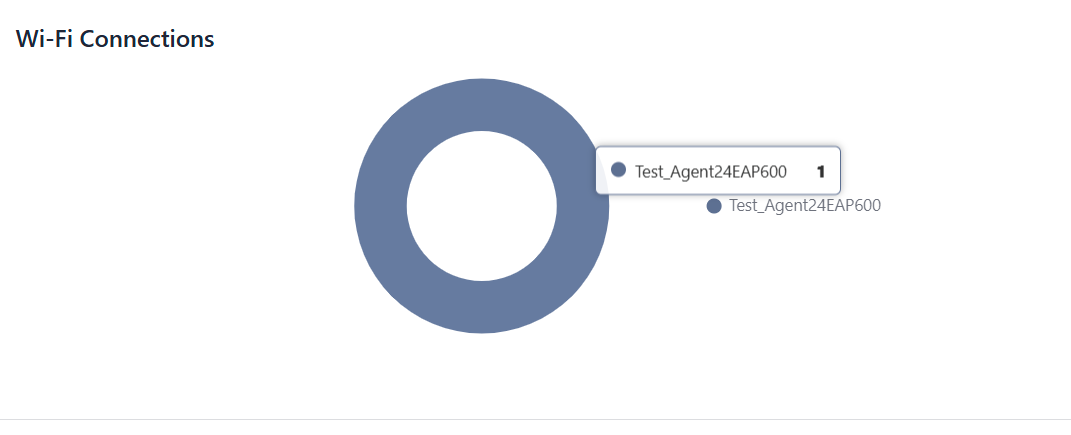

Fig. 5-1-3 view the Wi-Fi connection status

5.2 Status

Click on the [ Status ] option in the left menu to enter the status page, where you can check the device's Mesh status, client list, events, and logs .

5.2.1 Mesh

In this menu interface, you can see the Mesh connection status between APs. The green indicator in the diagram represents the current device’s role

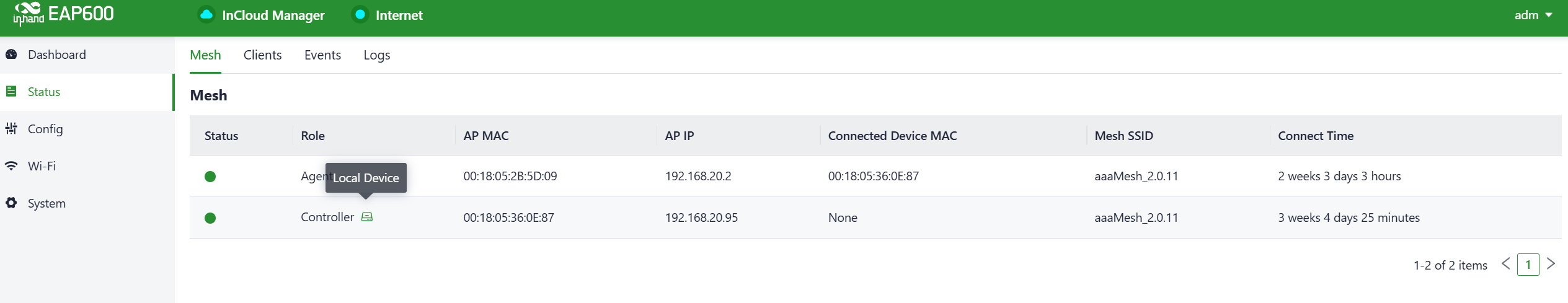

Fig. 5-2-1 Mesh

  1. Status: Green indicates that the Mesh network has been successfully established, while gray indicates that the Mesh network has not been successfully established.
  2. Role: Indicates the role of the AP in the Mesh network.
    1. Controller: The Controller in the entire Mesh network
    2. Agent: The Agent in the Mesh network
  3. AP MAC:The MAC address uniquely identifying the AP hardware.
  4. AP IP: In the Mesh network, the EAP600’s address is assigned by the Controller’s DHCP or by a DHCP server obtained by the Controller from a third-party device.
  5. Connected Device MAC: Shows the MAC address of the AP’s parent node. The Controller does not have a parent node.
  6. Mesh SSID: The SSID broadcasted by the Controller in the Mesh network.
  7. Connnect Time: The duration for the AP to establish the Mesh network.

5.2.2 Clients

Clients typically refer to wireless devices connected to an access point (AP), such as laptops, smartphones, tablets, and other similar devices.
You can access detailed client information connected to the EAP600 via the "Status > Clients" feature. This information includes client names, IP addresses, MAC addresses, VLAN, connected SSID, RSSI, operating channels, Wi-Fi standards, traffic usage, online duration, and more.

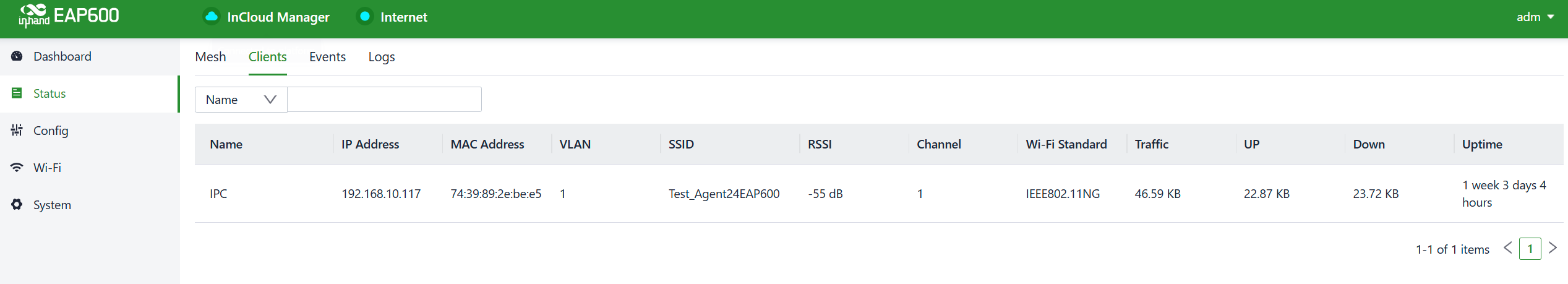

Fig. 5-2-2 Wireless Client Connection Information

5.2.3 Events

[ Event ] is used to record information related to the device's status, performance, and user-triggered operations. This helps IT personnel understand the network's operational status, detect problems promptly, and take necessary measures. It is a valuable tool for network monitoring and troubleshooting.
You can access event information generated during the device's operation via the "Status > Events" function. This helps IT understand the device's operational status and can be useful for troubleshooting issues. New events will be updated at the beginning of the table.

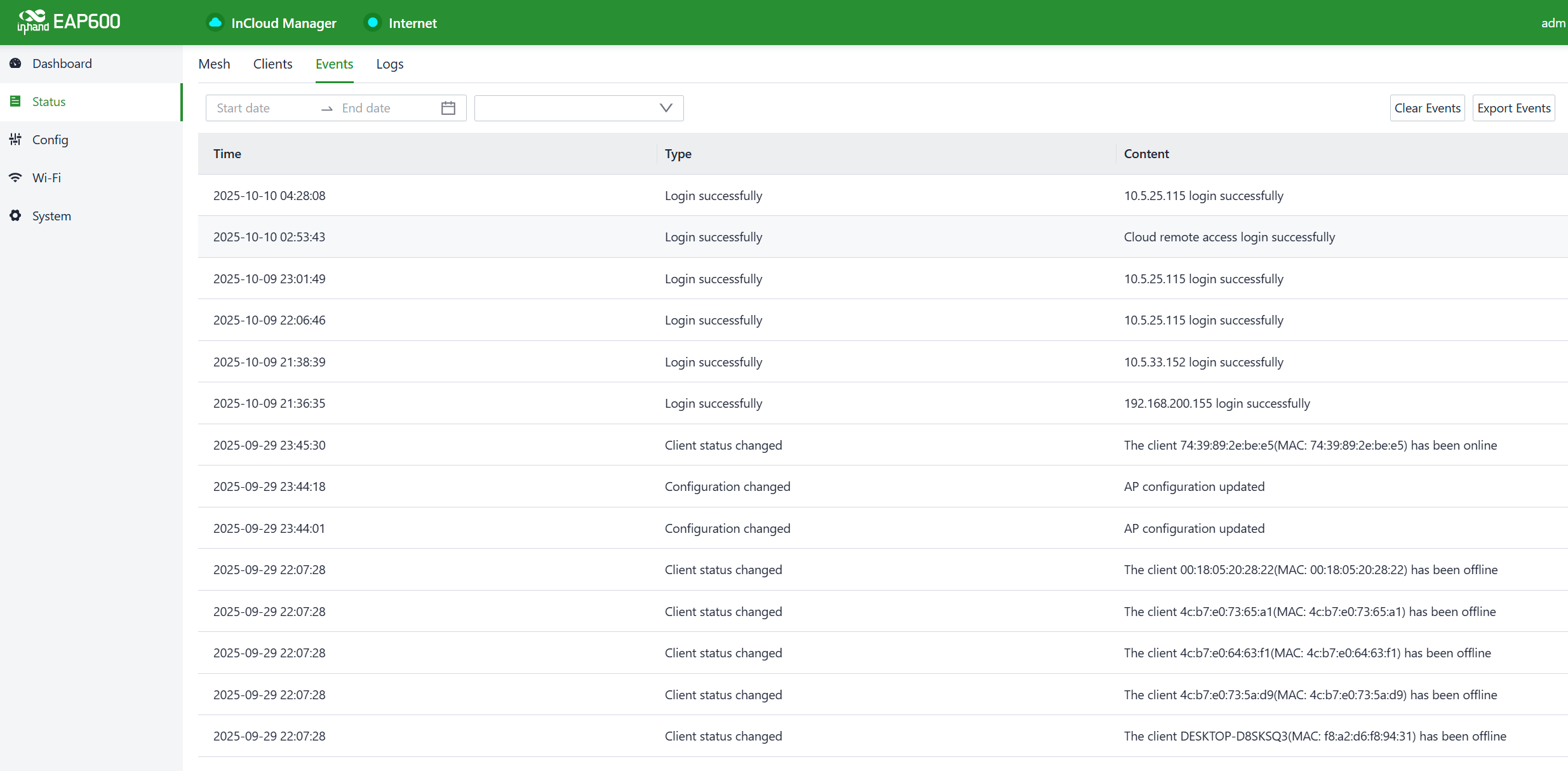

Fig. 5-2-3 Check the recorded events

At the top of the event list, you can filter the displayed content by setting the time and selecting the event level. You can also export or clear recorded events using the "Clear Events" and "Export Events" buttons. In addition, you can set the number of events displayed per page and use the fast page navigation at the bottom right of the page.
The currently supported event types that can be recorded include:
  1. Successful User Login
  2. Failed User Login
  3. Configuration Changes
  4. High CPU Utilization
  5. High Memory Utilization
  6. Device Reboot
  7. Firmware Upgrade
  8. Client Status Changes
  9. Connection Status Changes
  10. These events are recorded to help you monitor and manage the device's operation and network activity.

5.2.4 Logs

The log function is used to record the raw return information of the device's operation under various circumstances. It is typically employed by IT or research and development personnel for the analysis and troubleshooting of issues.
You can access the device's system logs by navigating to the "Status > Logs" section. System logs provide detailed information about the device's operation, and they are invaluable for troubleshooting when issues arise. Users have the option to download and clear logs as needed.
You can filter the displayed log entries based on log level or by entering keywords.New log entries are added to the end of the log, keeping the most recent events at the bottom of the log.

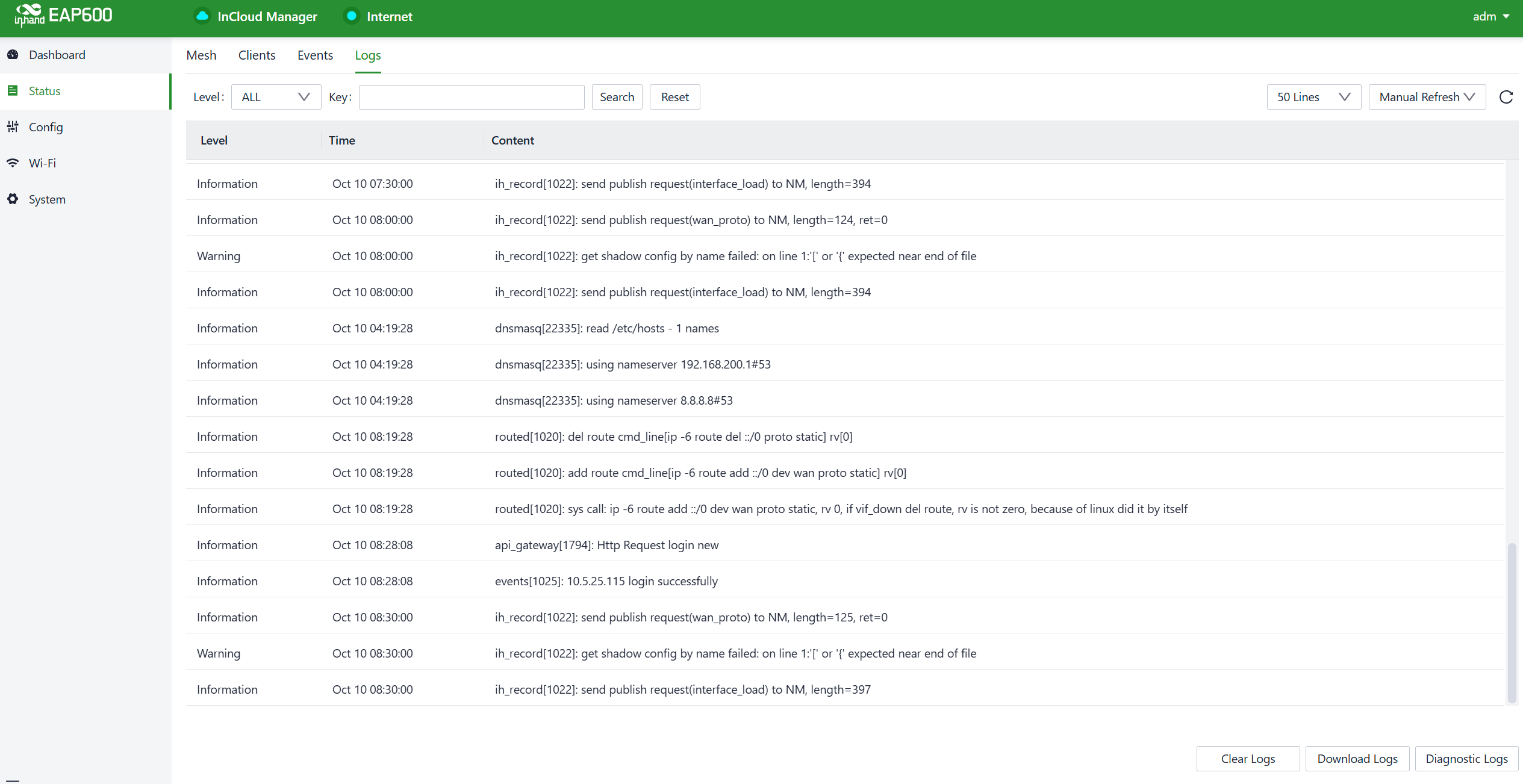

Fig. 5-2-4 Check the recorded logs

5.3 Configuration

Click on the "Config" button in the left-side navigation menu to access the configuration page. On this page, you can set up the device's WAN/LAN interface settings.

5.3.1 WAN

The EAP600 supports single-port wired access, and you can configure it to use DHCP or static IP address assignment based on their requirements. Click on “Configuration > WAN” to select the network connection type.

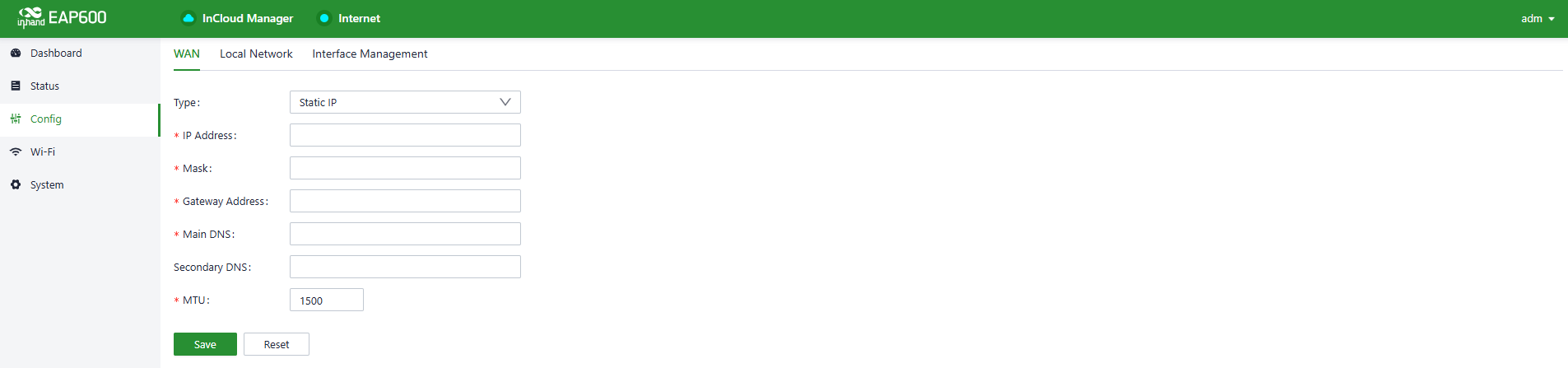

Fig. 5-3-1 Access the WAN editing interface

  1. DHCP: The EAP600 can dynamically obtain an internet IP address by using the DHCP server of the upstream router.
  2. Static IP: You can manually configure the address assigned by the ISP or upstream device. After the configuration is complete, the AP will connect to the network using the specified static IP.
  3. The default MTU value is 1500, and the valid input range is from 128 to 1500.

5.3.2 Local Network

In this interface, you can configure the local LAN subnet

Fig. 5-3-2 Add a local network

The "Network Type" field provides two available modes:

  1. Standard: Clients connected to the standard mode network can access the Internet and the device's web interface.
  2. Guest: Clients connected to the guest mode network can only access the Internet and cannot log in to the device's web interface.
  3. Edit Local Network: You can adjust the parameters of an existing local network, and the configuration fields are the same as when creating a new network.

5.3.3 Interface Management

In this interface, you can configure the port operation mode. By default, the port is in WAN mode, allowing the AP device to automatically obtain a DHCP address. When the AP operates in a Mesh or local network, the user can change the port to LAN mode.

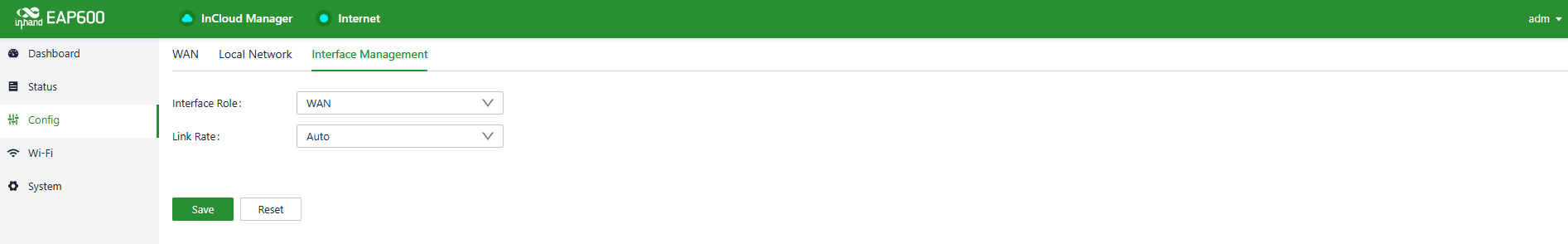

                                                                                                                                                                                         Fig. 5-3-3-a Edit the radio’s parameters
  1. When the port operates in WAN mode, the EAP600 will obtain an IP address assigned by DHCP through the port.
  2. When the port operates in LAN mode, the EAP600 will use its own DHCP service to assign IP addresses through the port.

5.4 Wi-Fi

5.4.1 SSIDs

You can set SSIDs for both 2.4 GHz and 5 GHz bands, with up to four SSIDs supported per band.

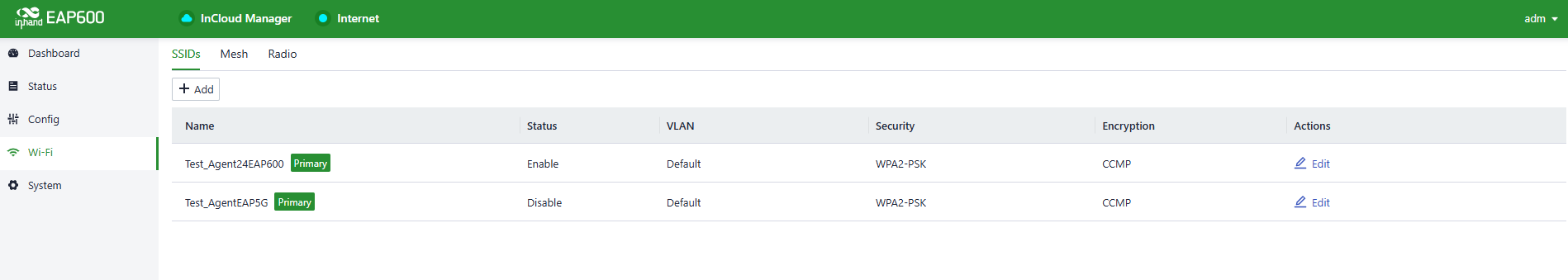

Fig. 5-4-1-a SSID Lists
  1. By default, the EAP600 will broadcast the initial SSIDs for both 2.4 GHz and 5 GHz bands. The username and password can be found on the nameplate.
    1. 2.4GHz: SSID: Username EAP600-XXXXXX(The last 6 digits of the 2.4G WiFi MAC address), Password: The last 8 digits of the serial number
    2. 5GHz: SSID: Username EAP600-5G-XXXXXX(The last 6 digits of the 2.4G WiFi MAC address), Password: The last 8 digits of the serial number

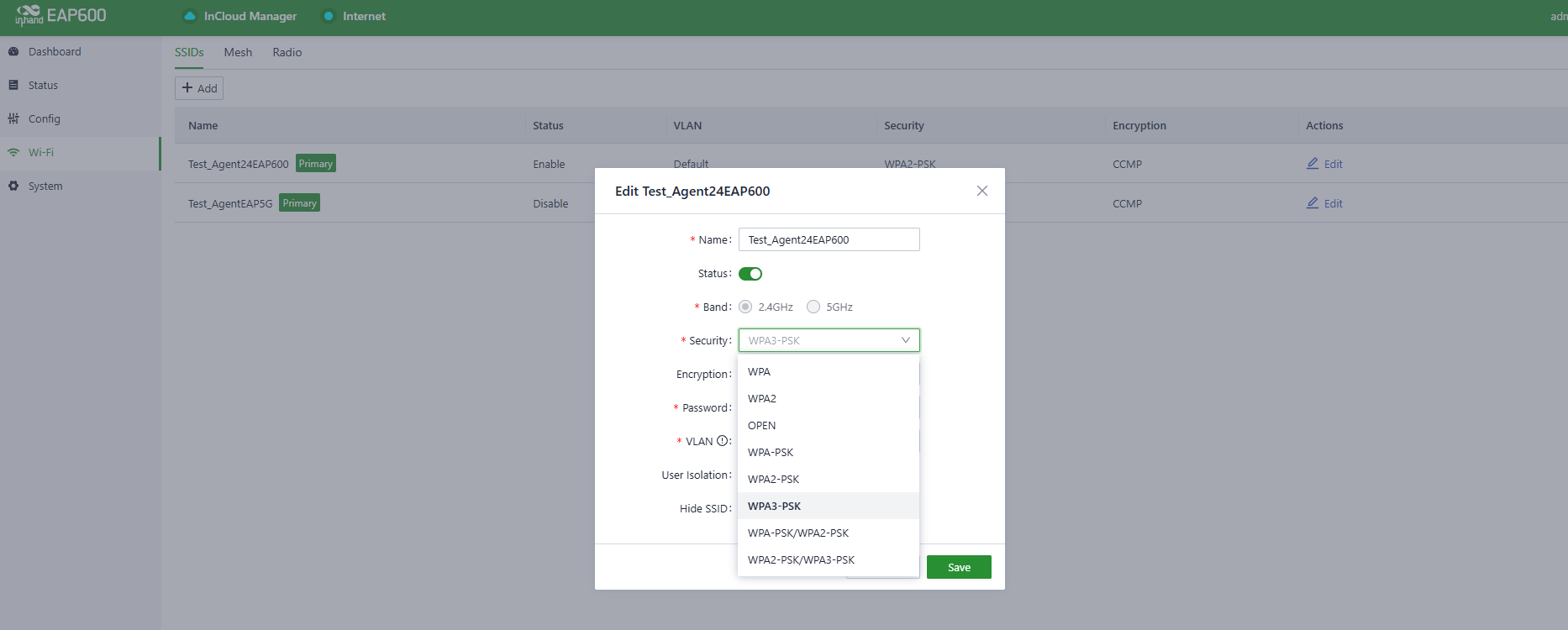

Fig. 5-4-1-b SSID setting

5.4.2 Mesh

To implement Mesh, both the Controller and Agent need to be configured as follows.

5.4.2.1 Controller

We recommend configuring the Controller first. Each Controller can connect to only one Agent at a time.

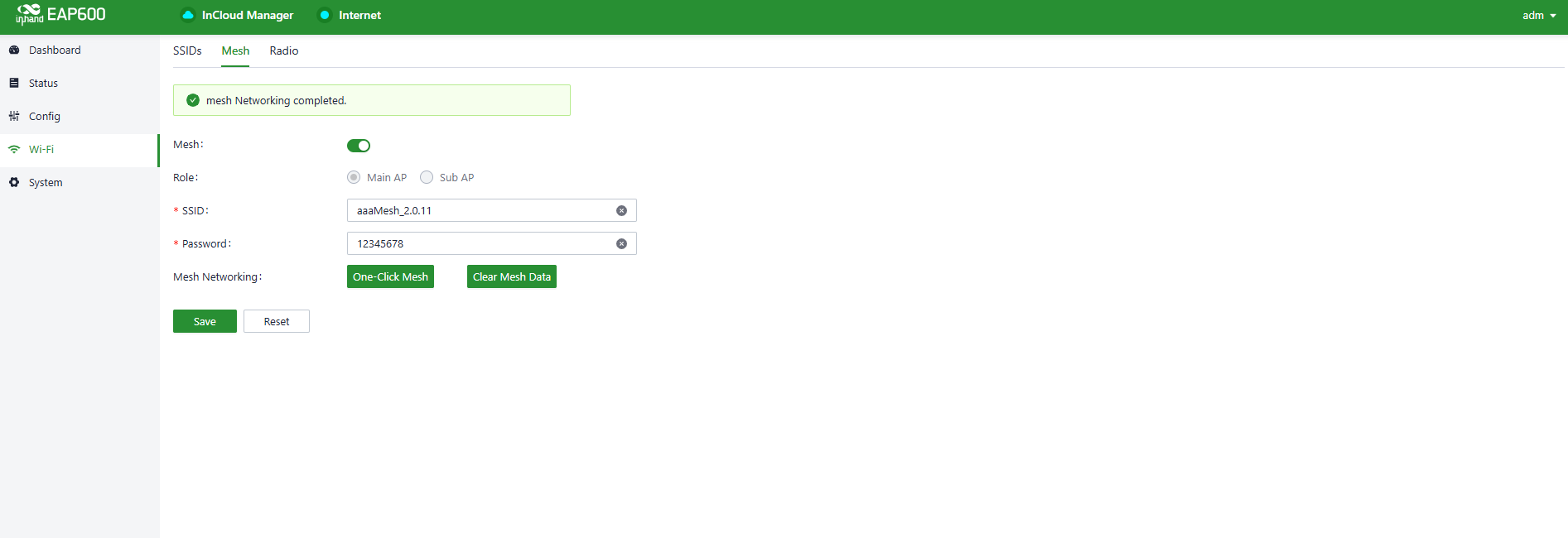

                                                                                                                                                                                                   Fig. 5-4-2-1 Controller setting
  1. After saving the configuration, buttons for “One-click Mesh” and “Clear Mesh Data” will appear on the page.
    1. One-Click Mesh: When the Controller stops broadcasting or a new Agent establishes a wireless connection for the first time, you need to click the button in the Controller’s configuration settings to ensure the Mesh network is successfully established.
    2. Clear Mesh Data: When you need to modify the Mesh configuration or clear the Mesh connection records, you can use this button to reset.
  2. The Controller will periodically send broadcast packets to establish the Mesh network. If no new Agent joins the Mesh network, it will stop broadcasting after 10 minutes.

5.4.2.2 Agent

InHand provides two ways for an Agent to join the Mesh network: via wired connection or wireless connection.Once the Controller is set up, an Agent can usually connect to it within one minute.

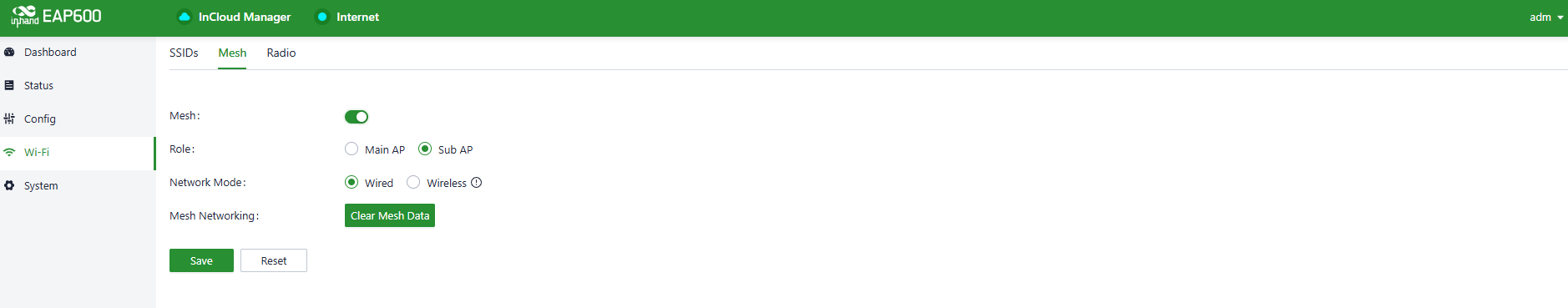

                                                                                                                                                                                               Fig. 5-4-2-2 Agent setting
  1. Wired: Wired Mesh setup is relatively simple and offers greater stability
  2. Wireless: Wireless Mesh can overcome cabling difficulties, but its stability is somewhat lower than wired.When setting up a wireless Mesh, make sure that no Ethernet cable is connected.

5.4.3 Radio

You can configure the frequency width and transmit power for 2.4GHz and 5GHz radio frequencies under "Configuration > Wi-Fi> Radio." When you set the “Transmit Power” to "Custom," you must manually enter the power value. The valid input range for power is between 1 and 20, with the default value being 20.

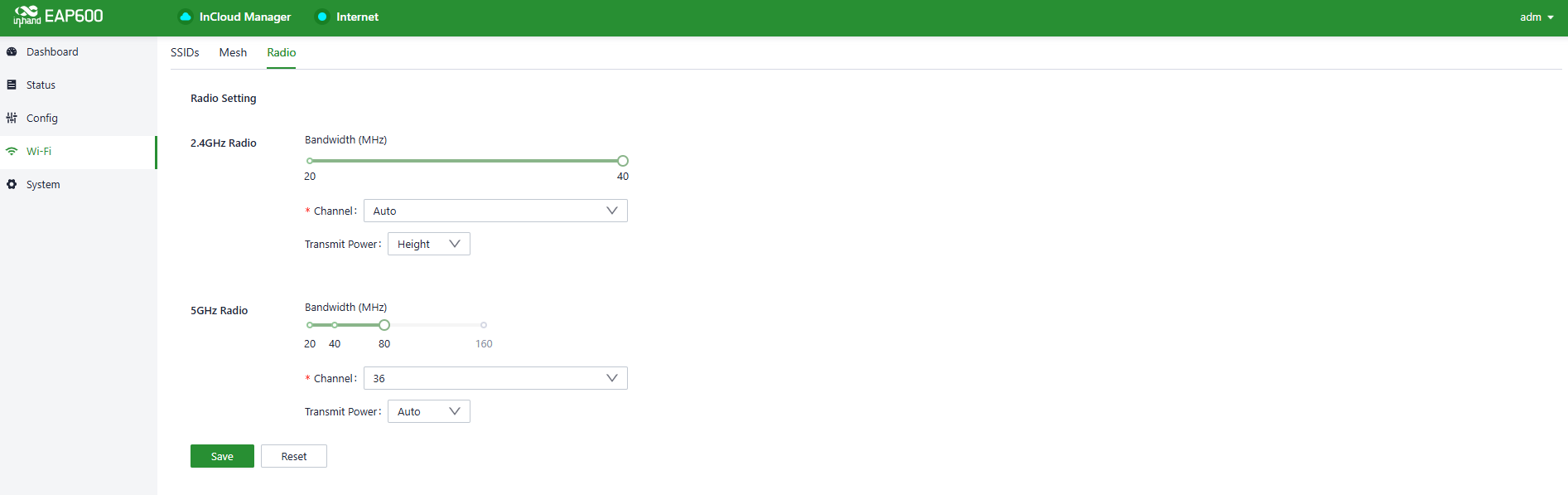

Fig.5-4-3- Set the Transmit Power manually


5.5 System

Under the "System" menu, you can configure various settings and features, including cloud management, remote access control, clock settings, device options, configuration management, device alerts, tools, and log server configurations.

5.5.1 Adm Management

The initial username and password for the device are "adm" and "123456." To enhance security, it is recommended to change this password. You can do this by clicking on "adm" in the top navigation bar, and then selecting "Change Password" from the dropdown menu.

Fig.5-5-a Modify the password


Fig.5-5-b Set a new password

5.5.2 Cloud Management

The Incloud Manager` (star.inhandcloud.com) is a cloud platform developed by InHand Networks to address the challenges faced by enterprise networks, such as slow deployment, complex operations, and poor user experiences. This platform prioritizes user needs and combines features like zero-touch deployment, intelligent operations and maintenance, security protection, and exceptional business experience capabilities. Once devices are connected to the cloud platform, you can perform remote management, batch configuration, and traffic monitoring, making network device management more convenient and efficient.
The EAP600, by default, automatically connects to the InCloud Manager once it's online. If you prefer not to use the cloud management functionality, you can manually disable this service in the "System > Cloud Management" section.


Fig. 5.-5-2 Enable the Incloud Manager service

5.5.3 Remote Access Control

You can manage the accessibility of the router's web configuration interface from external sources via the Internet by using the "System > Remote Access Control" feature. This feature enables you to control and configure remote access to the router's web interface.

Fig. 5.-5-3 Configure the remote access

When you enable remote access to the router's web configuration interface through the "System > Remote Access Control" feature, you have the following options:
  1. HTTPS: Once enabled, you can access the router's web interface remotely through a web browser by entering the public IP address and port number associated with the upstream interface.
  2. SSH: When enabled, you can remotely log in to the router's backend using a remote tool like CRT. Enter the public IP address and port number of the upstream interface, along with the username and password to establish remote access.
  3. Ping: Enabling this option allows external networks to initiate Ping requests to the IP address of the upstream interface.

5.5.4 Country & System Clock

In network functionality, the clock function refers to the capability used to coordinate and synchronize time between network devices. Clock functionality within a network is crucial for data transmission, log recording, security, coordination, and troubleshooting. It ensures that various devices in the network are operating at synchronized times, which is essential for efficient and secure network operations.

In the "System > Clock" function, you can perform the following actions.

  1. Select your country to configure the device with the appropriate time zone.
  2. Set the time and date to align with your local time. This will become the device's system time.
  3. Configure at least one valid NTP (Network Time Protocol) Server address. This allows the device to synchronize its system time with the selected NTP server, ensuring accurate timekeeping.

Fig.5-5-4 Choose the Country and configure the NTP server address

5.5.5 Device Option

In "System > Device Options," you can perform actions on the device, such as rebooting, firmware upgrades, and restoring to factory settings.

Fig. 5-5-5 Device Option interface



Cautions:

  1. When upgrading firmware locally, ensure that you obtain the firmware from legitimate sources to prevent the device from becoming unusable due to incorrect firmware installation.
  2. When the device is connected to the cloud platform, due to the cloud-based configuration synchronization mechanism, the platform will reapply the configuration that was in place before the factory reset, with the device only clearing historical data.

5.5.6 Configuration Management

Configuring backups and backup recovery are critical tasks in network management and maintenance. They involve the process of preserving configuration information for network devices so that they can be quickly restored or migrated when needed. This practice ensures the resilience and reliability of network operations and simplifies the recovery process in case of system failures or configuration changes.

In the “System > Configuration Management” section, users have the option to export the device configuration for local storage. This exported configuration can be saved on the local system and can be utilized to restore the device's configurations if they are lost or need to be replaced.

Fig. 5-5-6 Manage the device configuration

5.5.7 Device Alarms

You can choose to focus on specific events that may occur on the device by selecting the corresponding alarm events and configuring the email address for receiving alerts. When an alarm event occurs, the device will automatically send an email notification. It's important to note that even if a user doesn't select certain alarm options, related alarm events will still be recorded in the device's local logs.

You can set alarm event types and configure the email address for alerts in the "System > Device Alarms" function.The currently supported alarm events for the device are as follows:

Fig. 5-5-7-a Configure the alarm events

Once you've configured the outgoing email server address, port, username, and password for the sender's email, the device will use this email account to send alarm notifications. To verify the configuration of the sender's email, you can use the "Send Test Email" option. This feature allows you to check if the sender's email settings are correctly configured and that the device can successfully send test emails.

Fig. 5-5-7-b Set the alarm email receiving address

5.5.8 Tools

5.5.8.1 Ping

You can use ICMP (Internet Control Message Protocol) to check the device's external network connectivity. In the "Target" field, enter any domain name or IP address you want to test the device's connectivity to, and then click "Start" to check the connectivity status between the device and the specified target. This can help you determine whether the device can reach the target over the internet.
You can perform a network ping test on a target by going to "System > Tools > Ping." This allows to send ICMP echo requests to the specified target IP address or domain name and receive ICMP echo replies to check network connectivity and latency to that target.

Fig. 5-5-8-1 Ping

5.5.8.2 Traceroute

Traceroute is a network diagnostic tool used to determine the network path that data packets take from the source to the destination, as well as the intermediate routers or hops along that path.You can enter the target host's IP address in "System > Tools > Traceroute," choose the outgoing interface for the traffic, click "Start," and check the device's connectivity to the target IP by tracing the route.

Fig. 5-5-8-2 Traceroute

5.5.8.3 Capture

You can capture packets passing through a specific interface using the "System > Tools > Capture" feature. Select the "Output" option, and you can choose to either display the captured packets in the interface or export them locally for analysis or further examination.

Fig. 5-5-8-3 Packet Capture

5.5.9 Scheduled Reboot

You can set up an automatic reboot schedule in "System > Scheduled Reboot." You can choose the reboot frequency, such as daily, weekly, or monthly, and specify the exact time for each scheduled reboot.

Fig. 5-5-9 Set the reboot plan

When selecting "Monthly Reboot," if the chosen reboot day is greater than the actual number of days in that month, the device will perform the scheduled reboot at the specified time on the last day of that month.

5.5.10 System Settings

In the "System > System Settings" function, you can set the operating mode of EAP600.

Fig. 5-5-10 Set the reboot plan

  1. FAT (Firmware-Defined Access Point) Router Mode: In this mode, the AP operates in a FAT mode and uses the configuration set on the AP itself, including SSID, password, and other settings. In router mode, the WAN and LAN ports are isolated from each other, and client devices connected to the AP are assigned addresses from the AP's local address pool.
  2. FAT Bridge Mode: In this mode, the AP operates in FAT mode and uses the AP's configured SSID, password, and other settings. In bridge mode, the WAN and LAN ports are in the same Layer 2 network, and client devices connected to the AP obtain addresses from the DHCP server of the upstream router connected to the AP.

5.5.11 Log Server

When you enable the log file server function in the "System > Log Server" feature, the device will periodically upload log files to the specified server.

Fig. 5-5-11 Enable the log server service

5.5.12 Other Settings

5.5.12.1 Web Login Management

You can set the logout time in "System > Other Settings > Web Login Management." Once the online time for a single login session on the device's web page exceeds the set time, the system will automatically log out of the user, requiring them to log in again to continue their operations.

Fig. 5-5-12-1 Setting the automatic log-out time

5.5.12.2 Automatically Restart

When you enable this feature in "System > Other Settings > Automatically Restart," the device will automatically reboot if it cannot connect to the network and, after one hour of retrying, remains unable to access the network.

Fig. 5-5-12-2 Enable the Automatically Restart

6. Security Precautions

1. Please use PoE (Power over Ethernet) equipment that complies with the IEEE 802.3af/at standards to power the AP. If you are not using PoE for powering the device, make sure to use the original power adapter to avoid damaging the device.

2. Do not install the device in environments with strong electromagnetic interference and keep it away from high-power equipment. After installation, ensure that the device is securely fixed to prevent damage or potential harm due to the device falling.

3. Verify that the operating environment meets the specified temperature and humidity conditions for the device.

4. Regularly inspect the device cables, keeping them clean, and promptly replace any damaged cables.

5. When cleaning the device, avoid spraying chemical agents directly on the device's surface to prevent damage to the casing or internal components. Use a soft cloth for cleaning.

6. Do not attempt to disassemble or modify the device on your own, as this can pose safety risks and void the warranty for the device.



7. Troubleshooting

7.1 Clients Cannot Connect to the Wireless Network?

1.       Verify that the Access Point (AP) is operational and online. If any issues are detected, try restarting the AP or restoring it to a backup configuration.

2.       Refer to the 2.1 LED Indicators to check the AP's LED indicators for any abnormal signals.

3.       Ensure that the AP's firmware is up to date. Obtain the latest firmware version from the official source.

4.       Double-check that the AP's SSID and encryption settings match the configurations on your client devices.

5.       Examine the AP's wireless channel settings to ensure there is no interference from neighbouring channels.

6.       Review the AP's wireless configuration, including transmit power and frequency band settings.

7.       If the issue persists, attempt to overwrite the current configuration with a backup or restart the device.

7.2 Wireless network is slow or experiencing instability?

1.       Check the signal strength and interference level of the Access Point (AP).

2.       Verify that the number of clients connected to the AP does not exceed its capacity.

3.       Review the AP's channel settings and transmit power parameters to ensure they are configured appropriately.

4.       Inspect the vicinity for other electronic devices or high-power equipment, such as microwave ovens or Bluetooth devices. Ensure that the AP is not located too close to such devices.

5.       If the problem persists, try overwriting the current configuration with a backup or reboot the AP.

7.3 AP Cannot Start Properly or Frequent Crashes?

1.    Check if the AP's power adapter is properly connected or if the PoE power supply device is functioning correctly.

2.    Refer to the "2.1 LED Indicator Description" to check the AP's LED indicators for any abnormal indications.

3.    Inspect the AP's temperature to ensure it is not overheating and verify that the environmental humidity meets the device's requirements.

4.    If the issue persists, consider updating or reinstalling the AP's firmware.

7.4 Unable to Connect to a Specific Website or Service?

1.       Check if other devices can access the website or service.

2.       Clear your browser's cache and cookies.

3.       Verify if the DNS server addresses are configured correctly and consider trying different DNS server addresses.

7.5 Is the cloud platform free?

For the EAP600 product, InHand provides the license to users for free. Licenses are still required for the ER series routers.

7.6 How can I add devices to the cloud platform?

First, register for a login account on the InCloud Manager platform at https://star.inhandcloud.com/.
Use the registered account to log in to the cloud platform, navigate to the "Devices" menu, and click on "Add." Follow the prompts to enter the device's serial number and MAC address to complete the addition process. When adding a device for the first time, a complimentary one-year Basic license is provided, and you can renew it as needed.

7.7 Is it possible to use devices without the cloud platform?

Yes. You have the option to configure most settings locally. However, for features like batch configuration deployment, firmware upgrades, Connector, and more, it is recommended to use the cloud platform for enhanced functionality and management.


If you are unable to resolve the issue using the steps mentioned above or encounter any other problems, please contact InHand Network for technical support. You can visit www.inhandnetworks.com to obtain more information.





















    • Related Articles

    • 5G ODU2002 Product User Manual

      Declaration Thank you for choosing our company's product! Before use, please carefully read this user manual. By complying with the following statements, you will help maintain intellectual property rights and legal compliance, ensuring that your ...

    • 5G FWA02 Product User Manual

      Declaration Thank you for choosing our company's product! Before use, please carefully read this user manual. By complying with the following statements, you will help maintain intellectual property rights and legal compliance, ensuring that your ...

    • Industrial Router IR900 Product User Manual

      Declaration Thank you for choosing our product. Before using the product, read this manual carefully. The contents of this manual cannot be copied or reproduced in any form without the written permission of InHand. Due to continuous updating, InHand ...

    • Industrial Router IR624 Product User Manual

      Deceleration Thank you for choosing our company's product! Before use, please carefully read this user manual. By complying with the following statements, you will help maintain intellectual property rights and legal compliance, ensuring that your ...

    • Portable Router CR202-Pro Product User Manual

      Declaration Thank you for choosing our product. Before using the product, please read this manual carefully. The contents of this manual cannot be copied or reproduced in any form without the written permission of InHand. Due to continuous updating, ...
