Portable Router CR202-Lite Product Quick Guide

Overview

This manual is a guide for the installation and operation of CR202-Lite routers from InHand Networks. Please confirm the product model and packaging accessories (cable, antenna), and purchase SIM cards from local network operators

All statements, information and recommendations in this manual do not constitute any expressed or implied warranty.

1 Packing List

Each CR202-Lite product includes common accessories, please check carefully when you receive our products. If there is any missing or damage, please contact InHand sales staff.

InHand can provide customers with optional accessories according to different field. Please refer to the list of optional accessories for detailed information.

Packing list

	Unit	Remarks
CR202-Lite	1	CR202-Lite mobile 4G router
Battery	1	3000mAh
Power adapter	1	5V/2A Type-C interface
Ethernet Cable	1	1 meter cable
Installation screw	2	Expansion screws used for wall-mounted installation
SIM card ejector pin	1	Metal SIM ejector pin
Protection bag	1	Used for storing and protecting the device
Installation positioning card	1	Used for anchoring the position

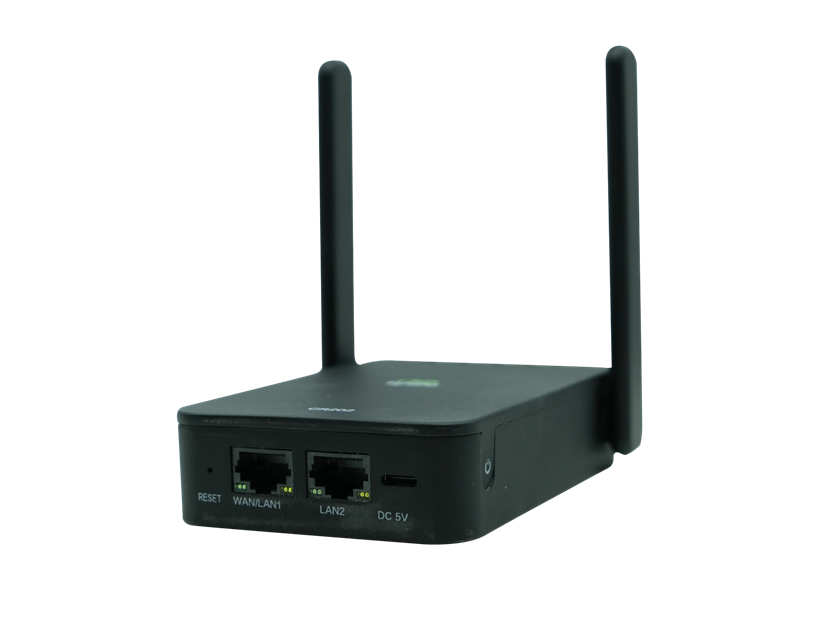

2 Panel Introduction

​

3 Installation

Precautions for installation:

● Power supply: Internal battery or Type-C interface (5V/2A), please pay attention to the power voltage level.

● Environment: Working temperature: -10℃～50℃, storage temperature: -20℃～60℃,  equipment surface may be high temperature, please consider the surrounding environment before installation.

● Support to be mounted. Avoid direct sunlight, away from heat source or strong electromagnetic interference.

● Check for cables and connectors required for installation.

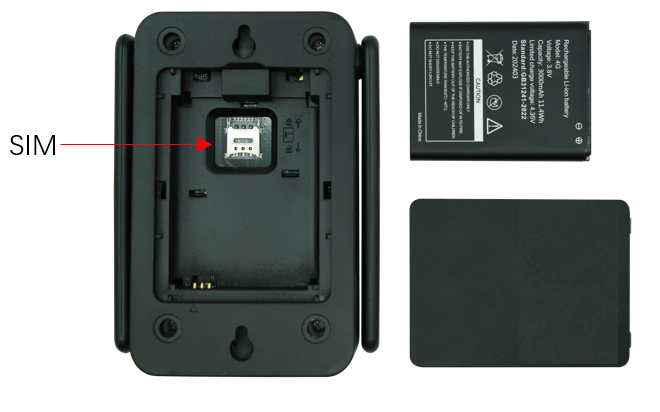

CR202-Lite supports single nano SIM card or eSIM. Please install the SIM card like below if use nano SIM card.

4 Access to Internet

CR202-Lite supports three ways of accessing to Internet: wired, cellular and Wi-Fi.

When CR202-Lite does not access to Internet via cellular, please disable Cellular in “Network>>Cellular”, otherwise the device will restart after trying dial up and fail for several times.

4.1 Wired to Internet

Step 1: Connect power and Ethernet cable to CR202-Lite, connect WAN/LAN1 port to public network, and LAN2 to PC.

Step 2: Configure PC to be in the same network segment as the IP address of the router.

(1) Enable PC to obtain an IP address from DHCP automatically (recommended).

(2) Or configure a fixed IP address in the same network segment as the router for PC. The IP address should be one of the address in 192.168.2.2~192.168.2.254, Subnet mask should be 255.255.255.0, and Default gateway should be 192.168.2.1. DNS server should be 8.8.8.8 or the address of ISP’s DNS server.

Step 3: Access to the default IP address 192.168.2.1 in a browser, enter username and password (please look at the nameplate at the bottom of the device for login credentials) in pop-up window and then access to router’s WEB management page. If the browser alarms the connection is not private, show advanced, and proceed to access to the address.

Step 4: Create a WAN port in “Network >> WAN” in the left menu. Configure an IP address for WAN port and let the router connect to Internet.

There are there methods to obtain IP address: Dynamic DHCP (recommend). Static IP (Click Apply & Save after configure manually) and ADLS Dialup (Click Apply & Save after configure manually).

Obtain IP address by Dynamic Address (DHCP)

Obtain IP address by Static IP

Obtain IP address by ADSL Dialup

Step 5: Check the connectivity in “Tools >> PING”.

4.2 SIM Card Dialup

Step 1: Insert the SIM card when device is power off. Connect 4G antenna to the router, and connect PC to router. Then power on.

Note:

When insert or plug out SIM card, please power off the device to prevent data loss or damage to the router.

Step 2: Open a browser and access to router’s WEB management page. (refer to 4.1)

Step 3: Click “Network >> Cellular”, set profile. The device enables the cellular by default, it will connect to Internet within a few minutes. If the device cannot connect to Internet, please disable and restart dialup. (If you use a private network SIM card, you also need to configure APN parameter)

Step 4: Check the dialup status in “Status”, if it shows Connected and there is IP address and other dialup parameters, the router has connect to Internet by SIM card.

4.3 Wi-Fi to Internet

Step 1: Connect Wi-Fi antenna, and connect PC to the device. Access to router’s WEB management page. (refer to 4.1)

Step 2: Set Wi-Fi mode: AP or STA.

AP mode (default mode): CR202-Lite acts as an accsess point to radiate wireless signals, and other terminal devices can connect CR202-Lite to access the Internet. It is necessary to ensure that CR202-Lite itself has been connected to the Internet through wired or cellular. AP mode supports setting SSID name and encryption method, and terminal devices will need to input password when connecting.

STA mode: CR202-Lite connects to other AP Wi-Fi device to access the Internet.

1. Select WLAN Type to STA in “Network>>Switch WLAN Mode” and save. Then reboot the router.

2. Click “Scan” to scan available AP in “Network>>WLAN Client”, and click Connect to choose one of AP.

3. Configure Wi-Fi parameters and save. Then check the connection status in “Status>>Network Connection”.

4. Configure WAN mode in “Network>>WAN(STA)”, set WAN parameters for Wi-Fi.

5 Quick-Use Guidance

5.1 Restore to Factory Setting

5.1.1 Web Setting

Login to the WEB management page, click on the "System>> Config Management" menu in the navigation tree. Click "Restore default configuration" button, router will restore to default settings after reboot.

5.1.2 Hardware Restore

To restore to default settings via the reset button, please perform the following steps:

1. Press the RESET button immediately after power on the device.

2. When System LED turns yellow, release RESET button, system LED will blink, and press the RESET button again.

3. When System LED blinks slowly in green, release the RESET button. The device has been restored to default settings and will start up normally later.

5.2 Import/Export Configuration

Click "System >> Config Management", click “Browse” in Router Configuration, select a configuration file, and click Import to import the configuration file to the router.

Click Backup running-config to export configuration.

5.3 Log and Diagnose Record

Click "Status >> log" and check the system log in router. Click Download Log File button to download log from router, and click Download System Diagnosing Data to download diagnose record from router.

5.4 Connect to InHand platform

Make sure that router has already connect to Internet. Click "Service>>Device Manager" to set router to connect to InHand DM platform. https://iot.inhandnetworks.com is the server for global.

Fill in your DM account in Registered Account then click "Apply" to save the configuration.

If you don’t have DM account, please click "Sign up/Sign in" after select server, then you will be directed to InHand Device Manager website, please follow the instruction to register an account.

Login your account in Device Manager, and add your device in “Gateways”, named your device and fill in the serial number from device, then you can manage your router in DM.

You can find the serial number in "Status>>System", or you can find it at the back of the device.

6 Description of Indicator

CR202-Lite(with battery)

LED	Status
System	Off --- Power off Blink in green --- Device starting Steady in green --- Device working Blink in yellow --- Upgrading
Network	Off --- Cellular disable Blink in green --- Dialing up Blink in yellow --- Dialing abnormal Blink in red --- No SIM card, cannot read SIM card or modem abnormal Steady in green --- Dialed up, signal level≥20 Steady in yellow --- Dialed up, 19≥signal level≥10 Steady in red --- Dialed up, 9≥signal level
Wi-Fi	Off --- Wi-Fi disable Blink in green --- Wi-Fi connected, data transmitting Steady in green --- Wi-Fi enable
Battery	Blink --- Battery charging Steady --- Battery discharging Green --- 80%＜battery level ≤100% Yellow --- 20%＜battery level ≤80% Red --- 0＜battery level ≤20%

CR202-Lite(no battery)

LED	Status
System	Off --- Power off Blink in green --- Device starting Steady in green --- Device working Blink in yellow --- Upgrading
Network	Off --- Cellular disable Blink in green --- Dialing up Steady in green --- Dialing successful Blink in yellow --- Dialing abnormal Blink in red --- No SIM card, cannot read SIM card or modem abnormal
Wi-Fi	Off --- Wi-Fi disable Blink in green --- Wi-Fi connected, data transmitting Steady in green --- Wi-Fi enable
Singal	Off --- Wi-Fi disable Steady in green --- Dialed up, signal level≥20 Steady in yellow --- Dialed up, 19≥signal level≥10 Steady in red --- Dialed up, 9≥signal level
